The Company warrants to the original purchaser of a QuickServe II Dumbwaiter, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
2 years for batteries
5 years for all other component parts
Labor reimbursement is not covered by this warranty
If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.

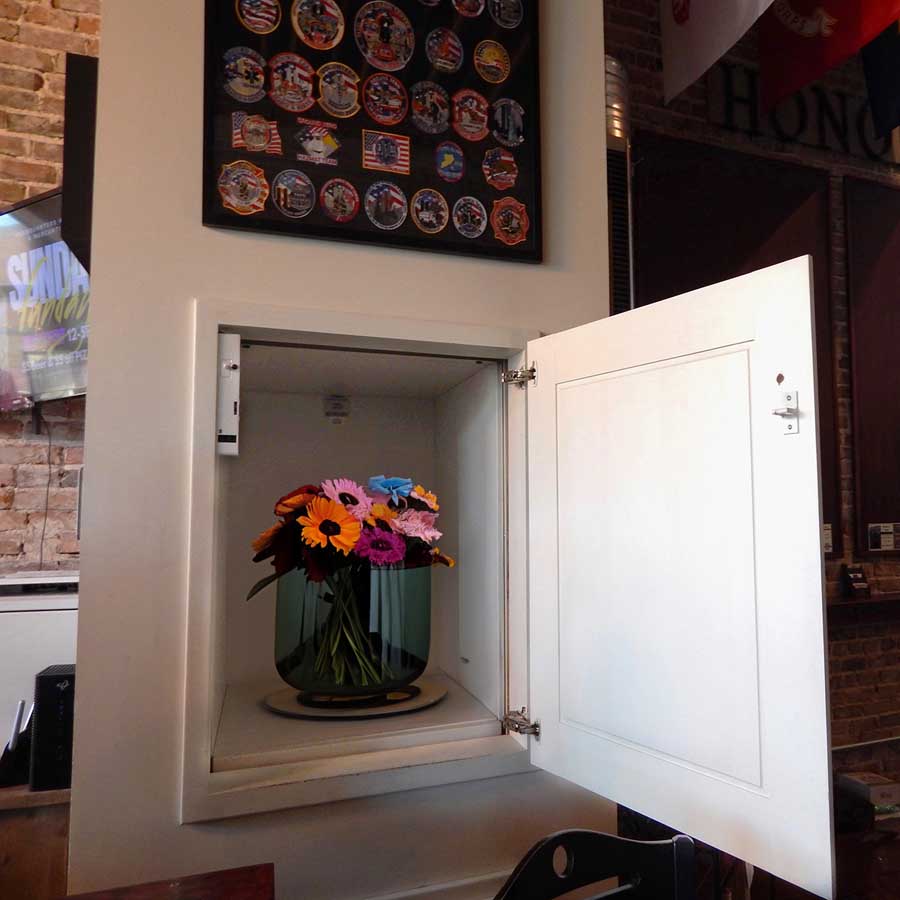

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 200 lbs capacity
- 24" Wide x 24" Deep x 30" High – 200 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
Product Specs
- Max Travel - Standard
10' - Max Travel - Optional
30' - Car Size - Standard
20Wx20Dx30H or 24Wx24Dx30H - Car Size - Optional
30Wx30Dx36H - Stops - Standard
2 - Stops - Optional
3 or 4 - Weight Capacity - Standard
200 - Weight Capacity - Optional
275 - Stainless Steel Panel Option
Yes - Hardwood Door Option
Yes - Straight Through Car Option
Yes - 90° Car Option
Yes
| Stops | | 2 Stops | $0.00 |
|---|---|---|---|
| Stops | | 3 Stops | $858.00 |
| Stops | | 4 Stops | $1,422.00 |
| Car Door Placement (in reference to the track) |  | Front Entry | $0.00 |
|---|---|---|---|
| Car Door Placement (in reference to the track) |  | Left Side Entry | $0.00 |
| Car Door Placement (in reference to the track) |  | Right Side Entry | $0.00 |
| Car Door Placement (in reference to the track) |  | Pass Through | $643.00 |
| Car Door Placement (in reference to the track) |  | 90 Degree Left Side | $786.00 |
| Car Door Placement (in reference to the track) |  | 90 Degree Right Side | $786.00 |
| Car Dimensions | | 20"W x 20"D x 30"H (200 LB Capacity) | $0.00 |
|---|---|---|---|
| Car Dimensions | | 24"W x 24"D x 30"H (200 LB Capacity) | $715.00 |
| Car Dimensions | | 30"W x 30" D x 36"H (275 LB Capacity) | $1,215.00 |
| Car Dimensions | | Custom Cab Size | $1,786.00 |
| Car Material | | Standard Coated Steel Panels (any size) | $0.00 |
|---|---|---|---|
| Car Material | | Stainless Steel Panels Must Match Car Dimensions Above | $0.00 |
| Car Material | | Stainless Steel 20"W x 20"D x 30"H | $2,429.00 |
| Car Material | | Stainless Steel 24"W x 24"D x 30"H | $2,715.00 |
| Car Material | | Stainless Steel 30"W x 30" D x 36"H | $3,286.00 |
| Car Material | | Stainless Steel Custom Size | $4,000.00 |
| Car Shelf | | Up to 4 Total | $0.00 |
|---|---|---|---|
| Car Shelf | | No Optional Car Shelf | $0.00 |
| Car Shelf | | Adjustable Wire Rack Car Shelf | $143.00 |
| Car Shelf | | Sliding Shelf | $500.00 |
| Car Shelf | | Metal Powder Coated Shelf | $215.00 |
| Car Shelf | | Stainless Steel Car Shelf | $643.00 |
| Call/Send Controls | | 1 RF Call Station Per Stop | $0.00 |
|---|---|---|---|
| Call/Send Controls | | Key Lock on RF Call Station | $72.00 |
| Call/Send Controls | | Car Here Indicator on RF Call Station | $143.00 |
| First Landing Door Locations | | Front | $0.00 |
|---|---|---|---|
| First Landing Door Locations | | Rear | $0.00 |
| First Landing Door Locations | | Left Side | $0.00 |
| First Landing Door Locations | | Right Side | $0.00 |
| Second Landing Door Locations | | Front | $0.00 |
|---|---|---|---|
| Second Landing Door Locations | | Rear | $0.00 |
| Second Landing Door Locations | | Left Side | $0.00 |
| Second Landing Door Locations | | Right Side | $0.00 |
| Third Landing Door Locations (if 3 or 4 Stop) | | None | $0.00 |
|---|---|---|---|
| Third Landing Door Locations (if 3 or 4 Stop) | | Front | $0.00 |
| Third Landing Door Locations (if 3 or 4 Stop) | | Rear | $0.00 |
| Third Landing Door Locations (if 3 or 4 Stop) | | Left Side | $0.00 |
| Third Landing Door Locations (if 3 or 4 Stop) | | Right Side | $0.00 |
| Fourth Landing Door Locations (if 4 Stop) | | None | $0.00 |
|---|---|---|---|
| Fourth Landing Door Locations (if 4 Stop) | | Front | $0.00 |
| Fourth Landing Door Locations (if 4 Stop) | | Rear | $0.00 |
| Fourth Landing Door Locations (if 4 Stop) | | Left Side | $0.00 |
| Fourth Landing Door Locations (if 4 Stop) | | Right Side | $0.00 |
| First Landing Hoistway Door Swing | | Door Hinged on the Right | $0.00 |
|---|---|---|---|
| First Landing Hoistway Door Swing | | Door Hinged on the Left | $0.00 |
| Second Landing Hoistway Door Swing | | Door Hinged on the Right | $0.00 |
|---|---|---|---|
| Second Landing Hoistway Door Swing | | Door Hinged on the Left | $0.00 |
| Third Landing Hoistway Door Swing (if 3 or 4 Stop) | | No Third Stop | $0.00 |
|---|---|---|---|
| Third Landing Hoistway Door Swing (if 3 or 4 Stop) | | Door Hinged on the Right | $0.00 |
| Third Landing Hoistway Door Swing (if 3 or 4 Stop) | | Door Hinged on the Left | $0.00 |
| Fourth Landing Hoistway Door Swing (if 4 Stop) | | No Fourth Stop | $0.00 |
|---|---|---|---|
| Fourth Landing Hoistway Door Swing (if 4 Stop) | | Door Hinged on the Right | $0.00 |
| Fourth Landing Hoistway Door Swing (if 4 Stop) | | Door Hinged on the Left | $0.00 |
| Additional Options | | Automatic Car Lighting | $108.00 |
|---|---|---|---|
| Additional Options | | Automatic Homing | $429.00 |
| Additional Options | | Select Landing for Automatic Homing (if selected above, bottom is #1) | $0.00 |
| RDI Interlock | | RDI Interlocks (1 per Stop Included) | $0.00 |
|---|---|---|---|
| RDI Interlock | | NOTE: if any stop has more than one access opening, order additional Interlocks | $0.00 |
| RDI Interlock | | Additional RDI Interlocks | $429.00 |
| RDI Interlock | | Upgrade RDI to Commercial Interlock (per Interlock) | $358.00 |
| Track | | 10' of Extruded Aluminum Track Included | $0.00 |
|---|---|---|---|
| Track | | Extra Track Per Foot (Over 10') | $65.00 |
| Hoistway/Access Doors | | No Optional Hoistway Doors | $0.00 |
|---|---|---|---|
| Hoistway/Access Doors | | Unfinished Poplar Hoistway Door | $500.00 |
| Hoistway/Access Doors | | Unfinished Maple Hoistway Door | $715.00 |
| Hoistway/Access Doors | | Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Poplar | $929.00 |
| Hoistway/Access Doors | | Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Maple | $1,143.00 |
| Dumbwaiter Shipping | | Shipping to Nearest Freight Terminal/ Loading Dock In or Near Your Zip Code (lower 48) | $0.00 |
|---|---|---|---|
| Dumbwaiter Shipping | | Call for Price to ship to Alaska or Hawaii | $0.00 |
| Optional Fire Proof Landing and Machine Access Doors | | Stainless Steel (#4 finish) Swing Door - 1.5 Hour Fire Rated | $0.00 |
|---|---|---|---|
| Optional Fire Proof Landing and Machine Access Doors | | 20" W x 30" H - Right Hand | $1,397.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 20" W x 30" H - Left Hand | $1,397.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 24" W x 30" H - Right Hand | $1,397.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 24" W x 30" H - Left Hand | $1,397.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 30" W x 36" H - Right Hand | $1,556.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 30" W x 36" H - Left Hand | $1,556.00 |
| Optional Fire Proof Landing and Machine Access Doors | | Machine Access Door | $0.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 18" W x 18" H Stainless Steel - Right Hand | $1,000.00 |
| Optional Fire Proof Landing and Machine Access Doors | | 18" W x 18" H Stainless Steel - Left Hand | $1,000.00 |
| Mounting Surface For Optional Fire Proof Doors | | Dry Wall Mounted | $0.00 |
|---|---|---|---|
| Mounting Surface For Optional Fire Proof Doors | | Masonry Wall Mounted | $0.00 |
| Crating and Shipping Preparation for Optional Fire Proof Doors | | No Optional Fire Proof Doors Ordered | $0.00 |
|---|---|---|---|
| Crating and Shipping Preparation for Optional Fire Proof Doors | | Up to 3 Doors | $462.00 |
| Crating and Shipping Preparation for Optional Fire Proof Doors | | Additional (per door) for Over 3 Doors (must select "Up to 3 Doors" also) | $154.00 |
| Freight for Optional Fire Proof Doors | | No Optional Fire Proof Doors Ordered | $0.00 |
|---|---|---|---|
| Freight for Optional Fire Proof Doors | | Freight for Up to 3 Doors | $770.00 |
| Freight for Optional Fire Proof Doors | | Freight for 4 Doors | $847.00 |
| Freight for Optional Fire Proof Doors | | Freight for 5 Doors | $1,001.00 |
| Freight for Optional Fire Proof Doors | | Freight for 6 or More Doors (call for quote) | $0.00 |
| Freight for Optional Fire Proof Doors | | Call for Price to Ship Outside the Contiguous 48 US States | $0.00 |
| Delivery Option for Optional Fire Proof Doors | | Liftgate Service (if needed for doors at the delivery point) | $231.00 |
|---|
