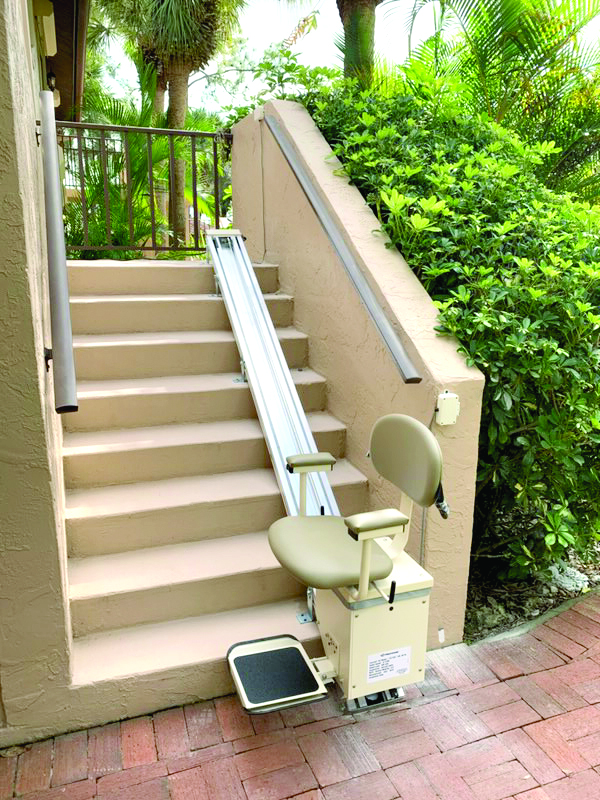

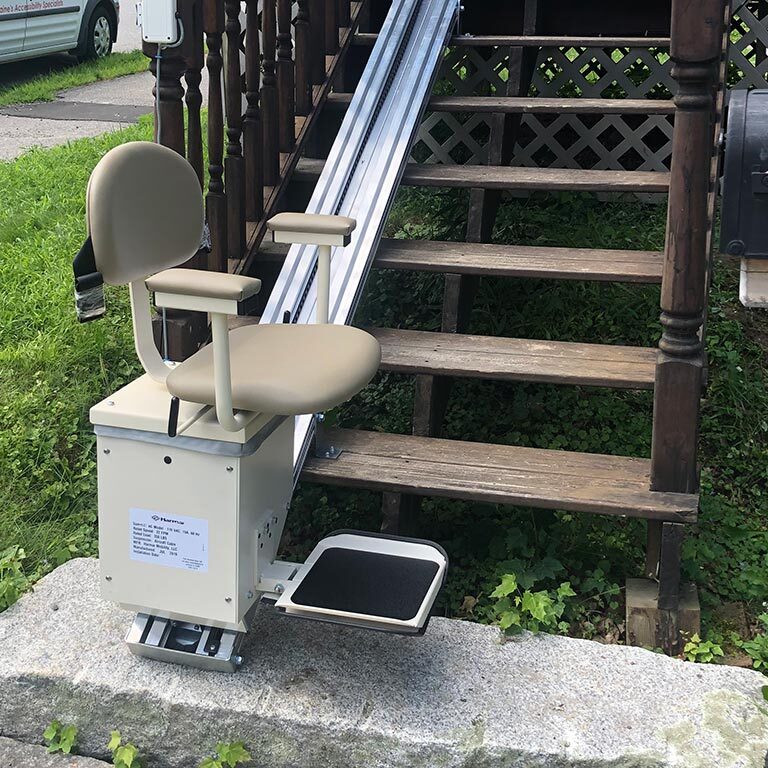

The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum
track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures
from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for
protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)
Features:
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)
Outdoor Stair Lifts are not intended for use in snow and ice
Features:

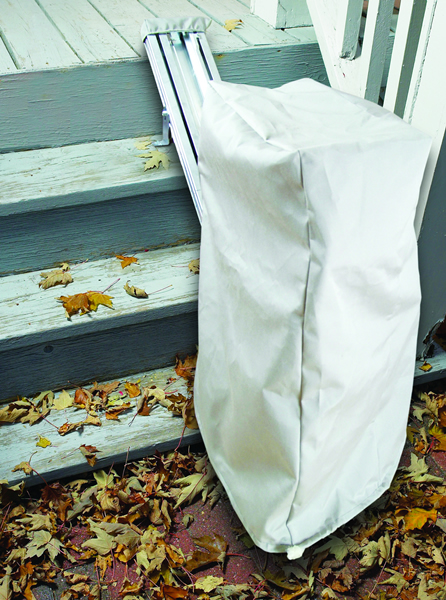

- Header cover, internal chassis cover and a large weatherproof cover included
- Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
- Mounts to the stairs (not the wall) on either side of staircase
- Operates on standard 115V AC household current
- Extruded aluminum track is available in custom lengths
- Seat and footrest fold to save space
- Seat cushions in exterior marine grade vinyl
- Separate controls at top and bottom of stairs
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
Product Specs
- Drive Type
Cable - Battery Powered
No - Self Installable
Yes - Basic Installation Included
No - Standard Capacity
350 lb - Max Track Length, Standard
15.5' - Max Track Length, Optional
25' - Track Material
Aluminum - Swivel Seat
Yes - Flip-Up Seat
Yes - Flip-Up Armrests
No - Constant Pressure Controls
Yes - Footrest Safety Sensor
Yes - Seat Width
17.5" - Seat Depth
14" - Unit Footprint, In Use
24.5" - Unit Footprint, Folded
14" - Track Footprint
12" - Track Width
8" - Call Stations Included
Wired - Rail Angle, Min
30° - Rail Angle, Max
45° - Digital Diagnostics Display
No - Key Lock
No
| Vinyl Seat Color |  | Light Almond | $0.00 |
|---|
| Seat Size | | 17.5" W | $0.00 |
|---|
| Options | | Keylock Package - Keyed Base & Keyed Call-Send Controls | $443.00 |
|---|---|---|---|
| Options | | Keyed Base Only | $236.00 |
| Options | | Grocery Basket | $293.00 |
| Options | | Wireless Call/Send Controls For Outdoors | $565.00 |
| Track Length (15' is Standard *) | | * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs. | $0.00 |
|---|---|---|---|
| Track Length (15' is Standard *) | | 15' of track * (180") | $0.00 |
| Track Length (15' is Standard *) | | Custom Cut track Less Than 15' | $150.00 |
| Track Length (15' is Standard *) | | Track length 16' and over reduces weight capacity to 250 pounds | $0.00 |
| Track Length (15' is Standard *) | | Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity | $350.00 |
| Track Length (15' is Standard *) | | Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity | $565.00 |
| Track Length (15' is Standard *) | | 20' of track Uncut 250 lb Capacity | $250.00 |
| Track Length (15' is Standard *) | | 25' of track Uncut 250 lb Capacity | $565.00 |
| Orientation (looking UP the staircase) | | The stair lift will be on the left | $0.00 |
|---|---|---|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the right | $0.00 |
| Installation | | NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there. | $0.00 |
|---|---|---|---|
| Installation | | Self Installation | $0.00 |
| Installation | | Nationwide Installation (Not available in Oregon or Washington) | $599.00 |
| Installation | | Nationwide Measurement Service - Requires an Installation Selection (Not available in Oregon or Washington) | $749.00 |
| Installation | | Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington) | $437.50 |
| Installation Permit | | License / Permit / Inspection | $425.00 |
|---|---|---|---|
| Installation Permit | | Permit and Inspection | $350.00 |
| Installation Permit | | Permit (Required in Kentucky for EACH item being installed) | $87.50 |
| Installation Permit | | Permit & Inspection (Required in Georgia for EACH item being installed) | $250.00 |
| Installation Permit | | Permit & Inspection (Required in Alabama. Additional units incur additional fee.) | $300.00 |
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
|---|---|---|---|
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
| Installation Special Cases | | Existing Stair Lift Removal | $499.00 |
| Installation Special Cases | | Additional Charge for Installation in the States of: New York, and Massachusetts | $150.00 |
| Measurements | | Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step. | $0.00 |
|---|---|---|---|
| Measurements | | 1. Overall length | $0.00 |
| Measurements | | 2. Top stair to bottom stair | $0.00 |
| Measurements | | 3. Staircase width | $0.00 |
| Measurements | | 4. Bottom clearance | $0.00 |
| Measurements | | 5. Rise of one step | $0.00 |
| Measurements | | 6. Tread of one step | $0.00 |
| Measurements | | 7. Diagonal | $0.00 |
| Measurements | | 8. Door at the top | $0.00 |
| Measurements | | Need help measuring? Print out the "How to Measure" worksheet. | $0.00 |
