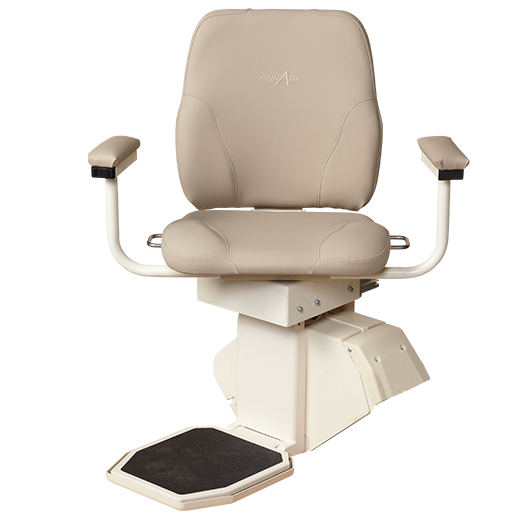

The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing.
As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics.
Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
- Drive Type
Helical Worm Drive - Battery Powered
Yes - Self Installable
Yes - Basic Installation Included
No - Standard Capacity
600 lb - Max Track Length, Standard
15.5' - Max Track Length, Optional
40' - Track Material
Clear Anodized Aluminum - Swivel Seat
Yes - Flip-Up Seat
Yes - Flip-Up Armrests
No - Constant Pressure Controls
Yes - Footrest Safety Sensor
Yes - Seat Width
24" - Seat Depth
16" - Warranty
3-Year on Components, 10-Year on Rack , 1-Year on Batteries - Call Stations Included
2 Wireless - Rail Angle, Min
32° - Rail Angle, Max
52° - Digital Diagnostics Display
No - Key Lock
Yes
| Track Lengths Selection: 15' (180") is Standard * |  | * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs. | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * |  | 15' (180") of Track | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * | | Length in inches if Shorter than 180" (allow +7" for entry/exit) | $0.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 3' of Additional Track | $250.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 5' of Additional Track | $393.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 7'9" (93") of Additional Track | $536.00 |
|---|
| Additional Brackets (comes with standard) | | Standard Brackets | $29.00 |
|---|
| Additional Brackets (comes with standard) | | Tall Brackets | $29.00 |
|---|
| Options | | Track Cut to Custom Length (Required for any track cut) | $143.00 |
|---|
| Options | | Key Lock on Chasis | $143.00 |
|---|
| Options | | Seatbelt Extension | $100.00 |
|---|
| Options | | Manual Lowering Tool | $50.00 |
|---|
| Call Stations | | Top & Bottom Call-Send Stations | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the left | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the right | $0.00 |
|---|
| Installation | | NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout | $0.00 |
|---|
| Installation | | Self Installation | $0.00 |
|---|
| Installation | | Nationwide Installation | $599.00 |
|---|
| Installation | | Nationwide Installation and Measurement Service | $749.00 |
|---|
| Installation | | Double Stair Lift Installation Service - Per Stair Lift | $437.50 |
|---|
| Installation | | Stair Lift Removal and Disposal | $499.00 |
|---|
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
|---|
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
|---|
| Measurements | | Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step. | $0.00 |
|---|
| Measurements | | 1. Overall length | $0.00 |
|---|
| Measurements | | 2. Top stair to bottom stair | $0.00 |
|---|
| Measurements | | 3. Staircase width | $0.00 |
|---|
| Measurements | | 4. Bottom clearance | $0.00 |
|---|
| Measurements | | 5. Rise of one step | $0.00 |
|---|
| Measurements | | 6. Tread of one step | $0.00 |
|---|
| Measurements | | 7. Diagonal | $0.00 |
|---|
| Measurements | | 8. Door at the top | $0.00 |
|---|
| Measurements | | Need help measuring? Please see our "How to Measure" page. | $0.00 |
|---|
