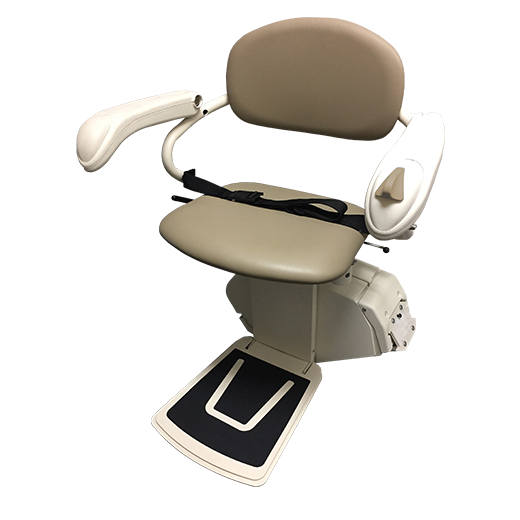

The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.
The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.
The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
- Drive Type
Polymer Worm / Worm-Rack - Battery Powered
Yes - Self Installable
Yes - Basic Installation Included
No - Standard Capacity
300 lb - Max Track Length, Standard
15.5' - Max Track Length, Optional
70' - Swivel Seat
Yes - Flip-Up Seat
Yes - Flip-Up Armrests
Yes - Constant Pressure Controls
Yes - Footrest Safety Sensor
Yes - Seat Width
19" - Seat Depth
16" - Unit Footprint, Folded
11" - Rail Angle, Min
32° - Rail Angle, Max
45° - Digital Diagnostics Display
No - Key Lock
Yes
| Track Lengths Selection: 15' (180") is Standard * |  | * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs. | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * |  | 15' (180") of Track | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * | | Length in inches if Shorter than 180" (allow +7" for entry/exit) | $0.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 3' of Additional Track | $250.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 5' of Additional Track | $393.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 7'9" (93") of Additional Track | $536.00 |
|---|
| Additional Brackets (comes with standard) | | Standard Brackets | $29.00 |
|---|
| Additional Brackets (comes with standard) | | Tall Brackets | $29.00 |
|---|
| Options | | Track Cut to Custom Length (Required for any track cut) | $143.00 |
|---|
| Options | | Chassis Obstruction Sensors | $108.00 |
|---|
| Options | | Key Lock on Chasis | $143.00 |
|---|
| Options | | Seatbelt Extension | $100.00 |
|---|
| Options | | Manual Lowering Tool | $50.00 |
|---|
| Options | | Folding Rail - Left Hand | $1,795.00 |
|---|
| Options | | Folding Rail - Right Hand | $1,795.00 |
|---|
| Power Options | | No Power Options | $0.00 |
|---|
| Power Options | | Power Swivel (temporarily out of stock) | $860.00 |
|---|
| Power Options | | Power Footrest | $795.00 |
|---|
| Power Options | | Power Swivel and Power Footrest (temporarily out of stock) | $1,490.00 |
|---|
| Call Stations | | Top & Bottom Call-Send Stations | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the left | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the right | $0.00 |
|---|
| Installation | | NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout | $0.00 |
|---|
| Installation | | Self Installation | $0.00 |
|---|
| Installation | | Nationwide Installation | $599.00 |
|---|
| Installation | | Nationwide Installation and Measurement Service | $749.00 |
|---|
| Installation | | Double Stair Lift Installation Service - Per Stair Lift | $437.50 |
|---|
| Installation | | Stair Lift Removal and Disposal | $499.00 |
|---|
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
|---|
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
|---|
| Measurements | | Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step. | $0.00 |
|---|
| Measurements | | 1. Overall length | $0.00 |
|---|
| Measurements | | 2. Top stair to bottom stair | $0.00 |
|---|
| Measurements | | 3. Staircase width | $0.00 |
|---|
| Measurements | | 4. Bottom clearance | $0.00 |
|---|
| Measurements | | 5. Rise of one step | $0.00 |
|---|
| Measurements | | 6. Tread of one step | $0.00 |
|---|
| Measurements | | 7. Diagonal | $0.00 |
|---|
| Measurements | | 8. Door at the top | $0.00 |
|---|
| Measurements | | Need help measuring? Please see our "How to Measure" page. | $0.00 |
|---|
