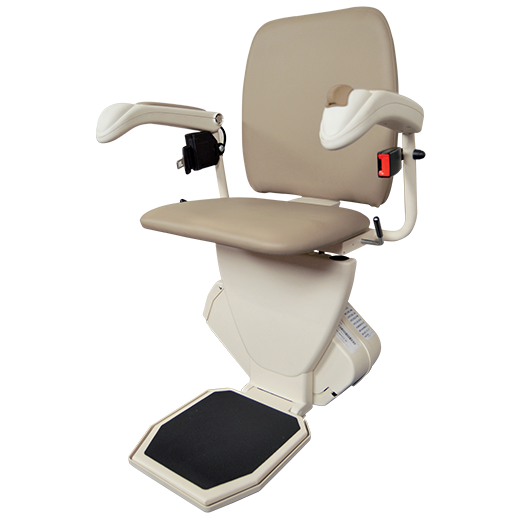

The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
- Drive Type
Polymer Worm / Worm-Rack - Battery Powered
Yes - Self Installable
Yes - Basic Installation Included
No - Standard Capacity
350 lb - Max Track Length, Standard
15.5' - Max Track Length, Optional
70' - Track Material
Aliuminum - Swivel Seat
Yes - Flip-Up Seat
Yes - Flip-Up Armrests
Yes - Constant Pressure Controls
Yes - Footrest Safety Sensor
Yes - Seat Width
20" - Seat Depth
15.5" - Unit Footprint, In Use
22.5" - Unit Footprint, Folded
11" - Track Footprint
7" - Track Width

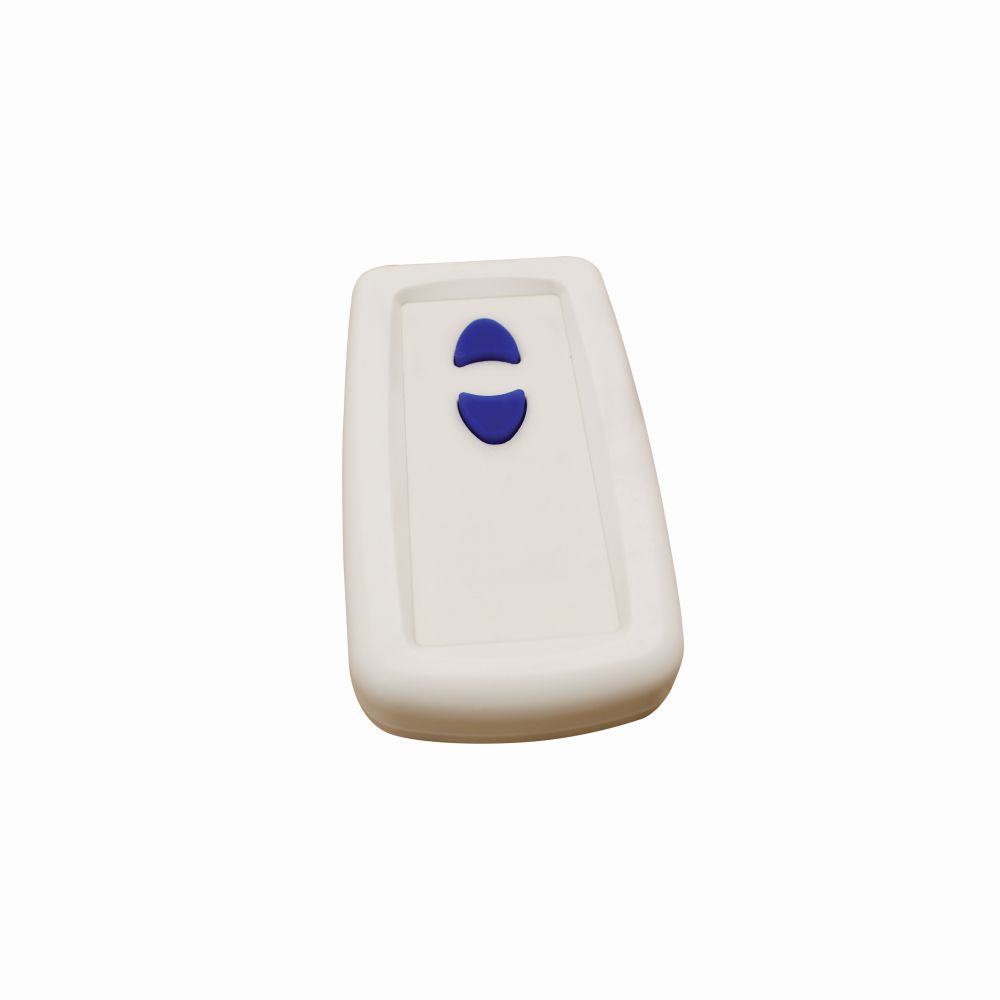

4.875" - Call Stations Included
Wireless - Rail Angle, Min
32° - Rail Angle, Max
52° - Digital Diagnostics Display
No - Power Cord Lengths
10' with the charger box in the middle - Key Lock
Yes
| Track Lengths Selection: 15' (180") is Standard * |  | * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs. | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * |  | 15' (180") of Track | $0.00 |
|---|
| Track Lengths Selection: 15' (180") is Standard * | | Length in inches if Shorter than 180" (allow +7" for entry/exit) | $0.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 3' of Additional Track | $250.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 5' of Additional Track | $393.00 |
|---|
| Additional Track (Maximum 70' Including the 15' Standard Track) | | Up to 7'9" (93") of Additional Track | $536.00 |
|---|
| Additional Brackets (comes with standard) | | Standard Brackets | $29.00 |
|---|
| Additional Brackets (comes with standard) | | Tall Brackets | $29.00 |
|---|
| Options | | Track Cut to Custom Length (Required for any track cut) | $143.00 |
|---|
| Options | | Key Lock on Chasis | $143.00 |
|---|
| Options | | Seatbelt Extension | $100.00 |
|---|
| Options | | Manual Lowering Tool | $50.00 |
|---|
| Options | | Folding Rail - Left Hand | $1,695.00 |
|---|
| Options | | Folding Rail - Right Hand | $1,695.00 |
|---|
| Power Options | | No Power Options | $0.00 |
|---|
| Power Options | | Power Swivel (temporarily out of stock) | $860.00 |
|---|
| Power Options | | Power Footrest | $795.00 |
|---|
| Power Options | | Power Swivel and Power Footrest (temporarily out of stock) | $1,495.00 |
|---|
| Call Stations | | Top & Bottom Call-Send Stations | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the left | $0.00 |
|---|
| Orientation (looking UP the staircase) | | The stair lift will be on the right | $0.00 |
|---|
| Installation | | NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout | $0.00 |
|---|
| Installation | | Self Installation | $0.00 |
|---|
| Installation | | Nationwide Installation | $599.00 |
|---|
| Installation | | Nationwide Installation and Measurement Service | $749.00 |
|---|
| Installation | | Double Stair Lift Installation Service - Per Stair Lift | $437.50 |
|---|
| Installation | | Stair Lift Removal and Disposal | $499.00 |
|---|
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
|---|
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
|---|
| Measurements | | Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step. | $0.00 |
|---|
| Measurements | | 1. Overall length | $0.00 |
|---|
| Measurements | | 2. Top stair to bottom stair | $0.00 |
|---|
| Measurements | | 3. Staircase width | $0.00 |
|---|
| Measurements | | 4. Bottom clearance | $0.00 |
|---|
| Measurements | | 5. Rise of one step | $0.00 |
|---|
| Measurements | | 6. Tread of one step | $0.00 |
|---|
| Measurements | | 7. Diagonal | $0.00 |
|---|
| Measurements | | 8. Door at the top | $0.00 |
|---|
| Measurements | | Need help measuring? Please see our "How to Measure" page. | $0.00 |
|---|
