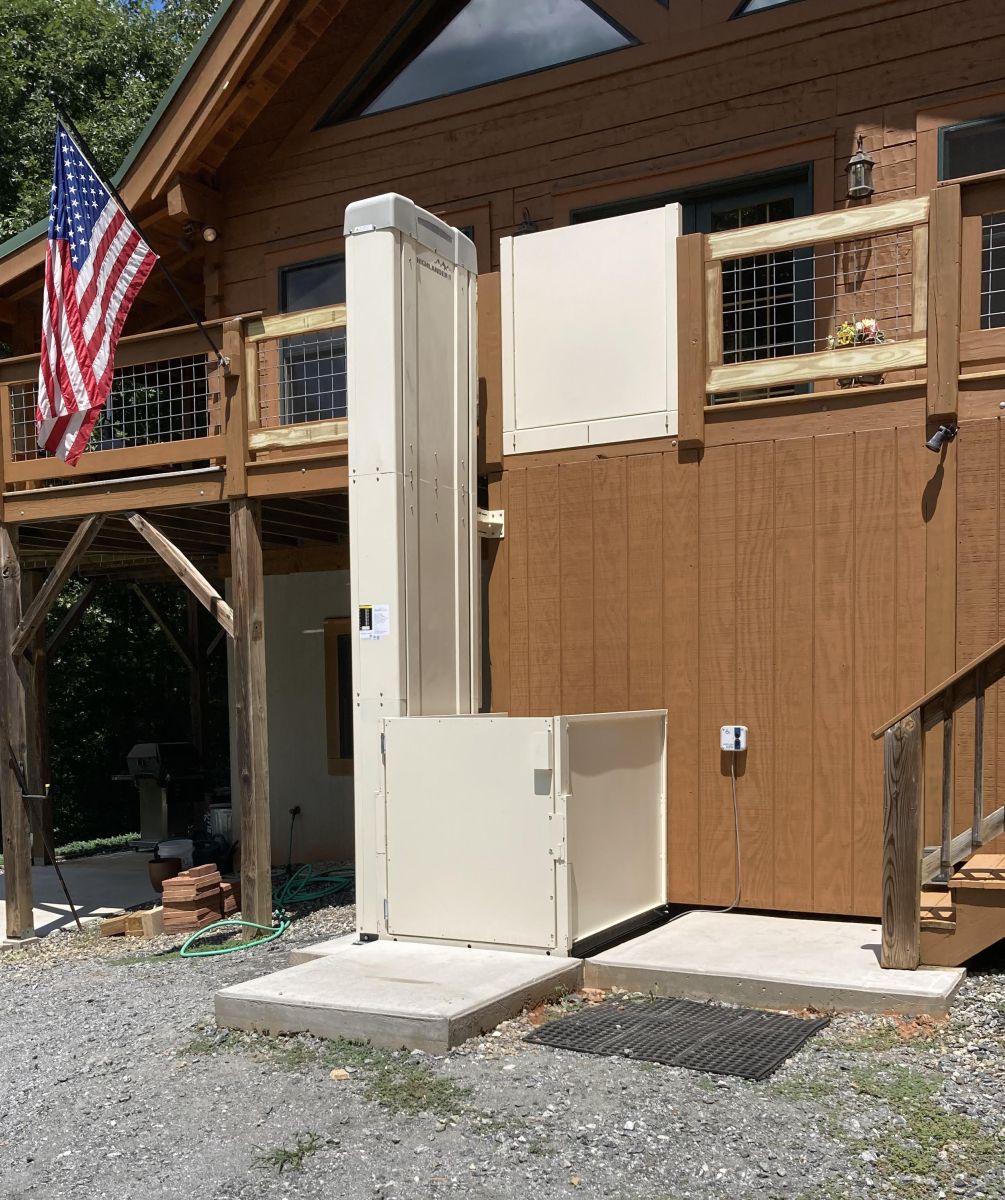

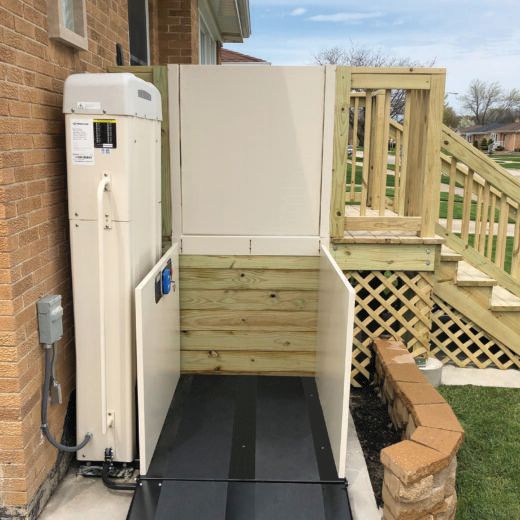

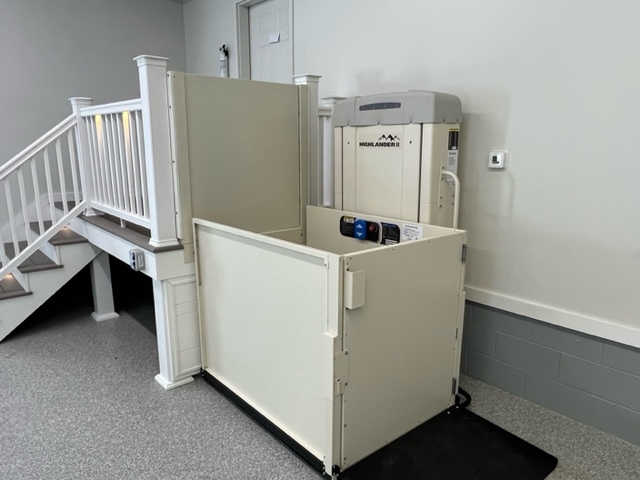

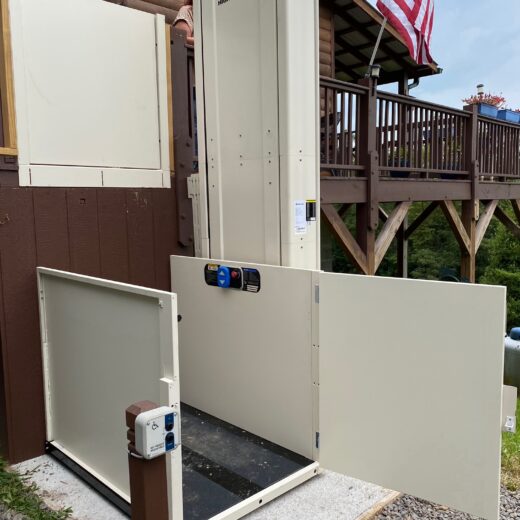

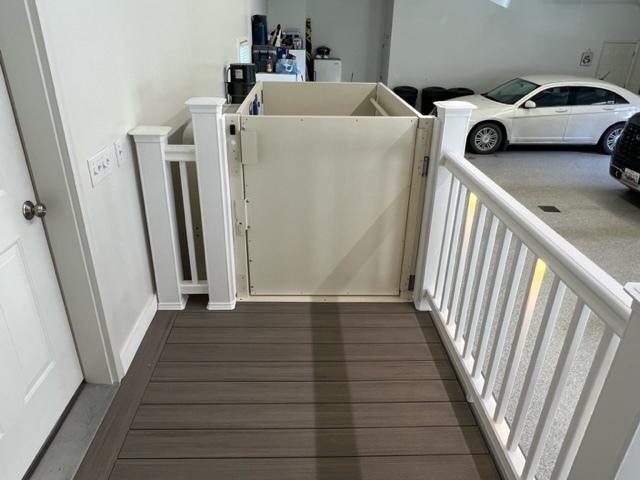

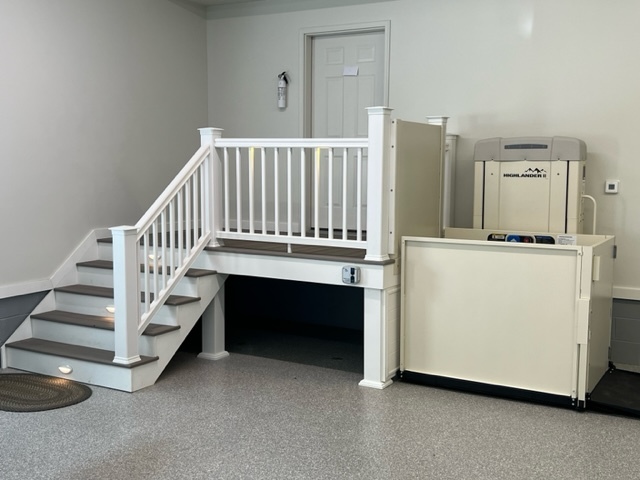

The Highlander II represents a new generation and evolution in Vertical Platform Lifts. New technologies introduced in the Highlander II make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.
Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander II is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander II is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
- Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
- SteadyDrive: Ensures a smooth, quiet and stable lift.
- ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
Product Specs
- Lifting Capacity
750 lb - Standard Lift Height
53" - Maximum Lift Height
171" - Arrives Assembled
Yes - Drive System
1" Diameter Acme Screw Drive - Optional Drive Systems
None Available - Battery Powered Option
Yes - Constant Pressure Platform Control
Yes - Emergency Stop Platform Control
Included - Alarm Button
Optional - Keyed Platform Control
Optional - Call-Send Controls
One Per Stop Included - Optional Call-Send Controls
Keyed and/or Wireless - Platform Type
Solid with Non-Skid Coating - Platform Size
36" x 48" (34" Usable Width) - Optional Platform Sizes
36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) - Platform Configuration
Straight-Thru Access - Optional Platform Configurations

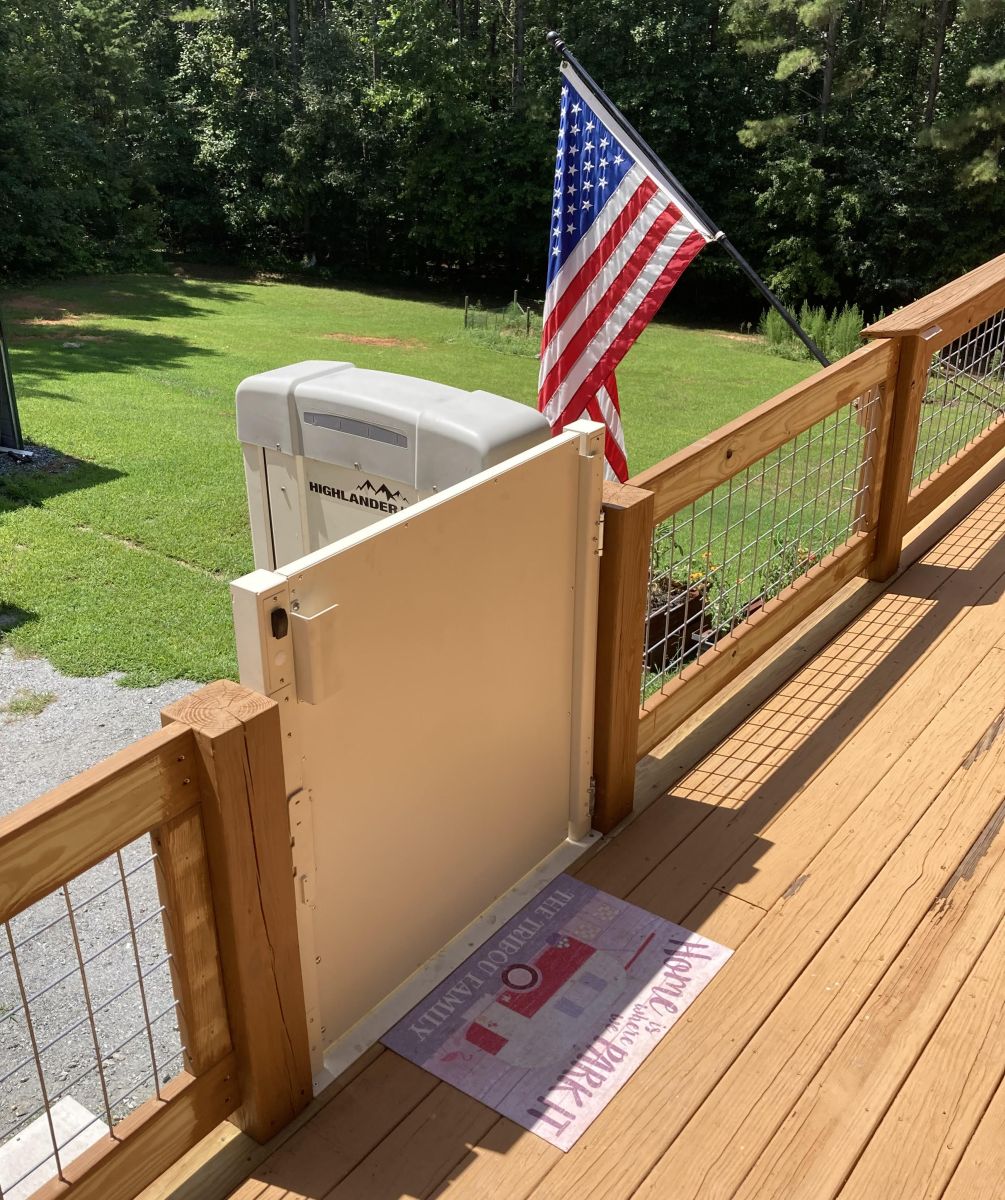

Same Side Entry-Exit, 90 Degree Adjacent Access - Upper Landing Gate
Optional - Upper Access Ramp
None Available - Lower Access Ramp

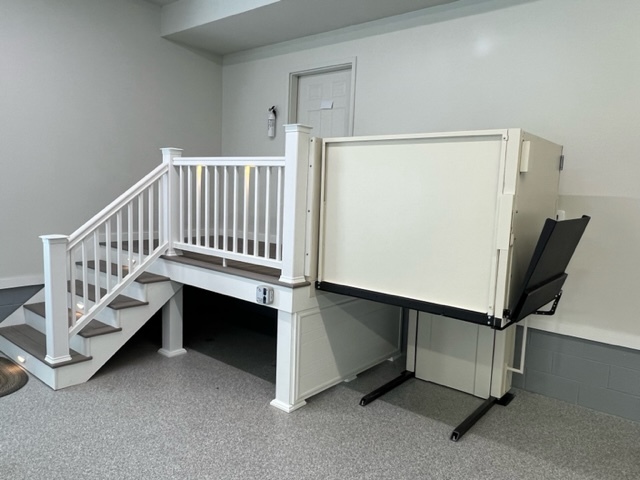

36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding - Grab Rail
Included - Guard Panel
36", Optional 42" - Maximum Stops
3 - Lift Speed (FPM)
10 - Portable
None Available - Other Options
Fire-Rated Doors, Automatic Door Openers
| Lifting Height | | 53" MAXIMUM LIFT HEIGHT | $0.00 |
|---|---|---|---|
| Lifting Height | | 77" MAXIMUM LIFT HEIGHT | $1,080.00 |
| Lifting Height | | 101" MAXIMUM LIFT HEIGHT | $3,390.00 |
| Lifting Height | | 125" MAXIMUM LIFT HEIGHT | $5,390.00 |
| Lifting Height | | 149" MAXIMUM LIFT HEIGHT | $7,390.00 |
| Lifting Height | | 171" MAXIMUM LIFT HEIGHT | $9,390.00 |
| Application | | Residential | $0.00 |
|---|---|---|---|
| Application | | Commercial (adds: Lighted Emergency Stop w/Alarm, Handrail, 42" Platform Panels) | $393.00 |
| Power Source | | AC POWERED | $0.00 |
|---|---|---|---|
| Power Source | | READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah | $1,070.00 |
| Power Source | | READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah | $1,224.00 |
| Use Options | | OUTDOOR USE | $216.00 |
|---|---|---|---|
| Use Options | | COLD WEATHER PACKAGE (FOR STANDARD UPS) | $262.00 |
| Use Options | | COLD WEATHER PACKAGE (FOR PLUS UPS) | $508.00 |
| Tower Orientation | | TOWER ON THE LEFT | $0.00 |
|---|---|---|---|
| Tower Orientation | | TOWER ON THE RIGHT | $0.00 |
| Number of Stops | | 2 STOPS | $0.00 |
|---|---|---|---|
| Number of Stops | | 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL | $1,170.00 |
| Hoistway Installation | | INSTALLED IN A HOISTWAY | $0.00 |
|---|---|---|---|
| Hoistway Installation | | NO HOISTWAY | $0.00 |
| Platform Type (Width, Depth, Height) | | Select From Options Below | $0.00 |
|---|---|---|---|
| Platform Type (Width, Depth, Height) | | [___________36"_High____________] | $0.00 |
| Platform Type (Width, Depth, Height) | | Straight Through (180 Degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 48 X 36 STRAIGHT THROUGH PLATFORM | $0.00 |
| Platform Type (Width, Depth, Height) | | [___________42"_High____________] | $0.00 |
| Platform Type (Width, Depth, Height) | | Straight Through (180 Degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 STRAIGHT THROUGH PLATFORM | $454.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 STRAIGHT THROUGH PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 STRAIGHT THROUGH PLATFORM | $931.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 STRAIGHT THROUGH PLATFORM | $1,047.00 |
| Platform Type (Width, Depth, Height) | | 90 Degrees | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 90 Degree LEFT PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 90 Degree RIGHT PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree LEFT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree RIGHT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 90 Degree LEFT PLATFORM | $1,354.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 90 Degree RIGHT PLATFORM | $1,354.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree LEFT PLATFORM | $1,454.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree RIGHT PLATFORM | $1,454.00 |
| Platform Type (Width, Depth, Height) | | Same Side Entry/Exit (0 Degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM | $1,354.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM | $1,454.00 |
| Platform Gate | | LIFTS 8' AND OVER THAT ARE NOT IN A HOISTWAY REQUIRE A PLATFORM GATE OR AN INTERLOCK FOR A CUSTOMER PROVIDED GATE. | $0.00 |
|---|---|---|---|
| Platform Gate | | NO PLATFORM GATE | $0.00 |

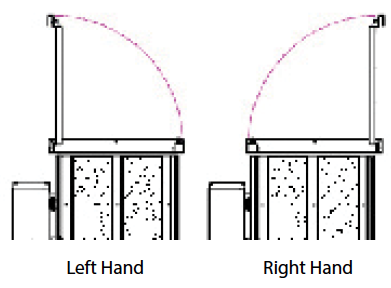

| Platform Gate |  | 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT | $1,454.00 |
| Platform Gate | | 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT | $1,454.00 |
| Platform Gate | | 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT | $1,700.00 |
| Platform Gate | | 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT | $1,700.00 |
| Platform Controls | | Paddle Controls with Emergency Stop Button | $0.00 |
|---|---|---|---|
| Platform Controls | | Emergency Stop Alarm with Lighted Button | $193.00 |
| Platform Options | | 54" HANDRAIL [FOR RESIDENTIAL INSTALLATIONS] | $154.00 |
|---|---|---|---|
| Platform Options | | 60" HANDRAIL [FOR RESIDENTIAL INSTALLATIONS] | $193.00 |
| Platform Options | | Keylocks for Controls | $108.00 |
| Platform Options | | CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH) | $154.00 |
| Ramp Type | | 36" AUTO-FOLD RAMP | $0.00 |
|---|---|---|---|
| Ramp Type | | 42" AUTO-FOLD RAMP | $116.00 |
| Ramp Type | | 36" FIXED RAMP | $0.00 |
| Ramp Type | | 42" FIXED RAMP | $116.00 |
| Ramp Type | | Pit, no Ramp (Add Pit Switch) | $262.00 |

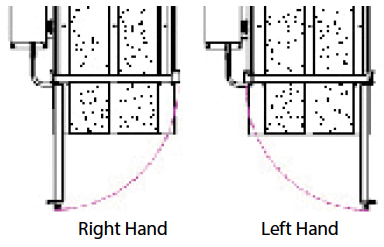

| Landing Gate |  | 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT | $1,516.00 |
|---|---|---|---|
| Landing Gate | | 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT | $1,516.00 |
| Landing Gate | | 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT | $1,700.00 |
| Landing Gate | | 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT | $1,700.00 |
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH FOR LANDING GATE | $136.00 |
|---|---|---|---|
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE | $247.00 |
| Fire Rated Doors |  | 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH | $3,915.00 |
|---|---|---|---|
| Fire Rated Doors | | 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH | $3,915.00 |
| Fire Rated Doors | | 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH | $4,531.00 |
| Fire Rated Doors | | 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH | $4,531.00 |
| Automatic Opener | | AUTOMATIC OPENER FOR LANDING GATE | $3,108.00 |
|---|---|---|---|
| Automatic Opener | | AUTOMATIC DOOR OPENER FOR FULL DOOR | $3,108.00 |
| Interlocks | | INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE. | $0.00 |
|---|---|---|---|
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH | $585.00 |
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH | $585.00 |
| Interlocks | | OTHER INTERLOCK OPTIONS | $0.00 |
| Interlocks | | WIRING FOR INTERLOCKS PROVIDED BY OTHERS | $300.00 |
| Interlocks | | KEYED DEAD LATCH FOR USE W/FLUSH MOUNT ELECTRIC STRIKE | $262.00 |
| Call Send Options | | CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) | $262.00 |
|---|---|---|---|
| Call Send Options | | KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) | $354.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 1 LANDING | $393.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS | $770.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS | $1,154.00 |
| Fascia Panels | | NO FASCIA PANELS | $0.00 |
|---|---|---|---|
| Fascia Panels | | FASCIA PANEL; 41" WIDE x 24" TALL | $116.00 |
| Fascia Panels | | FASCIA PANEL; 41" WIDE x 53" TALL | $162.00 |
| Fascia Panels | | FASCIA PANEL; 47" WIDE x 24" TALL | $147.00 |
| Fascia Panels | | FASCIA PANEL; 47" WIDE x 53" TALL | $231.00 |
| Fascia Panels | | FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT | $239.00 |
| Fascia Panels | | FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT | $270.00 |
| Additional Options | | TOWER BRACE WITH BRACKET | $300.00 |
|---|---|---|---|
| Additional Options | | PHONE JACK | $262.00 |
| Additional Options | | EMERGENCY TOWER LIGHT, BACK-UP | $262.00 |
| Additional Options | | EXTRA KEYS (EACH) | $47.00 |
| Additional Options | | CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for color options and price) | $0.00 |
| Additional Options | | FLOAT LEVEL SWITCH | $262.00 |
| Additional Options | | Pit Switch | $262.00 |
| Delivery Options | | FLAT BED AND FORKLIFT DELIVERY | $539.00 |
|---|---|---|---|
| Delivery Options | | Liftgate Service (for 53" only) | $130.00 |
