Get a special offer on this lift. How? Sign up for our Special Offer program.

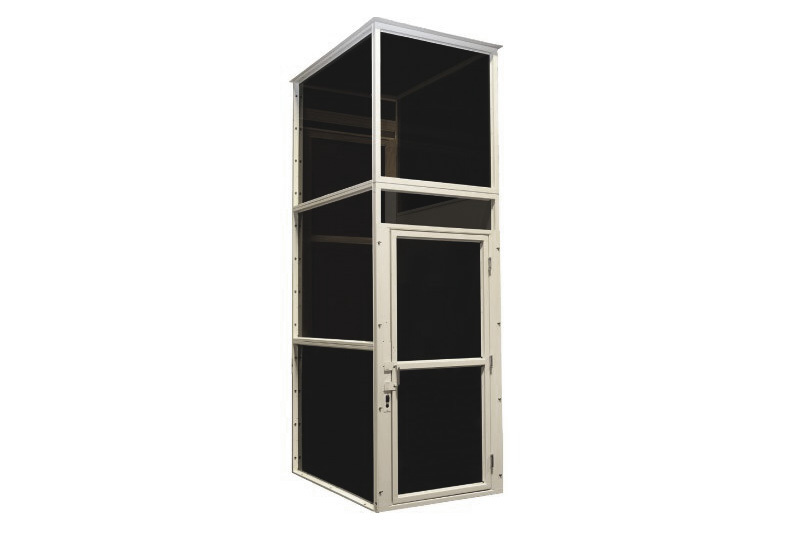

The Highlander Enclosed VPL represents a new generation and evolution in VPLs. New technologies introduced in the Highlander Enclosed VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.
Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.
Features:
- Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
- SteadyDrive: Ensures a smooth, quiet and stable lift.
- ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
- Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.
Product Specs
- Lifting Capacity
750 lb - Standard Lift Height
53" - Maximum Lift Height
17" - Arrives Assembled
Yes - Drive System
1" diameter ACME Scrwe - Battery Powered Option
Yes - Constant Pressure Platform Control
Yes - Emergency Stop Platform Control
Pit Switch Standard, Safety Underpan Option - Alarm Button
Lighted Emergency Stop with Alarm Option - Keyed Platform Control
Optional - Call-Send Controls
One per Stop Included - Optional Call-Send Controls
Keyed and/or Wireless - Platform Type
Solid with Non-Skid Coating - Platform Size
36" x 60" x 42" (34" Usable) - Optional Platform Sizes
42"x 60" (40" Usable) - Platform Configuration
Straight Thru Access - Optional Platform Configurations
Same Side Entry-Exit, 90 Degree Adjacent Access - Upper Access Ramp
None Available - Lower Access Ramp
36" or 42" Fixed Ramp - Grab Rail
Optional - Guard Panel
42" - Maximum Stops
3 - Lift Speed (FPM)
10 - Other Options
Fire-Rated Doors, Automatic Door Openers
| Included for Stratos Enclosed VPL | | Lower Landing Door | $0.00 |
|---|---|---|---|
| Included for Stratos Enclosed VPL | | Upper Landing Gate | $0.00 |
| Included for Stratos Enclosed VPL | | Pit Switch | $0.00 |
| Lifting Height |  | 53" MAXIMUM LIFT HEIGHT | $0.00 |
|---|---|---|---|
| Lifting Height | | 77" MAXIMUM LIFT HEIGHT | $1,080.00 |
| Lifting Height | | 101" MAXIMUM LIFT HEIGHT | $3,390.00 |
| Lifting Height | | 125" MAXIMUM LIFT HEIGHT | $5,390.00 |
| Lifting Height | | 149" MAXIMUM LIFT HEIGHT | $7,390.00 |
| Lifting Height | | 173" MAXIMUM LIFT HEIGHT | $9,390.00 |
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 53" MAXIMUM LIFT HEIGHT | $0.00 |
|---|---|---|---|
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 77" MAXIMUM LIFT HEIGHT | $830.00 |
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 101" MAXIMUM LIFT HEIGHT | $1,661.00 |
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 125" MAXIMUM LIFT HEIGHT | $2,500.00 |
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 149" MAXIMUM LIFT HEIGHT | $3,330.00 |
| Enclosure Kit (Must Match VPL Lifting Height Above) | | ENCLOSURE KIT FOR 171" MAXIMUM LIFT HEIGHT | $4,161.00 |
| Enclosure Width | | Enclosure Width must Match Platform Width Selected Below | $0.00 |
|---|---|---|---|
| Enclosure Width | | 36" Wide Enclosure | $0.00 |
| Enclosure Width | | 42" Wide Enclosure | $1,539.00 |
| Enclosure Material | | Steel Panels | $0.00 |
|---|---|---|---|
| Enclosure Material | | Acrylic Panels | $1,500.00 |
| Residential/Commercial | | Residential | $0.00 |
|---|---|---|---|
| Residential/Commercial | | Commercial (Includes Lighted E-Stop w/Alarm, and Handrail) | $393.00 |
| Power Source | | AC POWERED | $0.00 |
|---|---|---|---|
| Power Source | | READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah | $1,070.00 |
| Power Source | | READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah | $1,224.00 |
| Use Options | | OUTDOOR USE | $216.00 |
|---|---|---|---|
| Use Options | | COLD WEATHER PACKAGE (FOR STANDARD UPS) | $262.00 |
| Use Options | | COLD WEATHER PACKAGE (FOR PLUS UPS) | $508.00 |

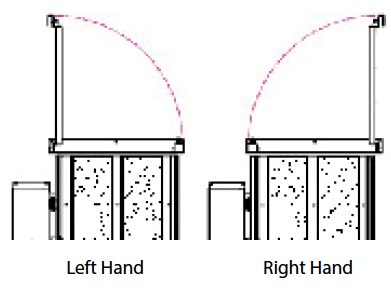

| Tower Orientation | | TOWER ON THE LEFT | $0.00 |
|---|---|---|---|
| Tower Orientation | | TOWER ON THE RIGHT | $0.00 |
| Number of Stops | | 2 STOPS | $0.00 |
|---|---|---|---|
| Number of Stops | | 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL | $1,170.00 |
| Platform Type (Width, Depth, Height) | | Select From Options Below | $0.00 |
|---|---|---|---|
| Platform Type (Width, Depth, Height) | | Straight Through (180 degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 STRAIGHT THROUGH PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 STRAIGHT THROUGH PLATFORM | $1,047.00 |
| Platform Type (Width, Depth, Height) | | 90 Degree | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree LEFT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree RIGHT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree LEFT PLATFORM | $1,454.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree RIGHT PLATFORM | $1,454.00 |
| Platform Type (Width, Depth, Height) | | Same Side Entry/Exit (0 degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM | $1,454.00 |
| Platform Controls | | Paddle Controls with Emergency Stop Button | $0.00 |
|---|---|---|---|
| Platform Controls | | Emergency Stop Alarm with Lighted Button - Included | $193.00 |
| Platform Options | | Keylocks for Controls | $108.00 |
|---|---|---|---|
| Platform Options | | CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH) | $154.00 |
| Handrail (for Residential VPL) | | No Handrail (for Residential VPL) | $0.00 |
|---|---|---|---|
| Handrail (for Residential VPL) | | 54" Handrail (for Residential VPL) | $154.00 |
| Handrail (for Residential VPL) | | 60" Handrail (for Residential VPL) | $193.00 |
| Ramp Type | | Pit, no Ramp, (Pit Switch is Included) | $0.00 |
|---|---|---|---|
| Ramp Type | | 36" FIXED RAMP | $0.00 |
| Ramp Type | | 42" FIXED RAMP | $116.00 |
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH FOR LANDING GATE | $136.00 |
|---|---|---|---|
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE | $247.00 |
| Fire Rated Doors |  | 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH | $3,915.00 |
|---|---|---|---|
| Fire Rated Doors | | 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH | $3,915.00 |
| Fire Rated Doors | | 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH | $4,531.00 |
| Fire Rated Doors | | 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH | $4,531.00 |
| Automatic Opener | | AUTOMATIC OPENER FOR LANDING GATE | $3,108.00 |
|---|---|---|---|
| Automatic Opener | | AUTOMATIC OPENER FOR LANDING DOOR | $3,108.00 |
| Interlocks | | INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE. | $0.00 |
|---|---|---|---|
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH | $585.00 |
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH | $585.00 |
| General Enclosure Options | | 3-Sided Enclosure (required for non-Enter/Exit Same Side) | $585.00 |
|---|---|---|---|
| General Enclosure Options | | Enter/Exit Same-Side Upgrade | $585.00 |
| General Enclosure Options | | 90 Degree Upper Landing Upgrade | $1,154.00 |
| General Enclosure Options | | Upper 6'8" (20.7 m) Enclosure Door Upgrade LH | $970.00 |
| General Enclosure Options | | Upper 6'8" (20.7 m) Enclosure Door Upgrade RH | $970.00 |
| General Enclosure Options | | Middle 6'8" (20.7 m) Enclosure Door LH | $2,393.00 |
| General Enclosure Options | | Middle 6'8" (20.7 m) Enclosure Door RH | $2,393.00 |
| General Enclosure Options | | 42" Wide Upper 6'8" Enclosure Door Upgrade | $1,539.00 |
| General Enclosure Options | | Acrylic Door Panel (Each) | $393.00 |
| General Enclosure Options | | Platform Safety Pan | $585.00 |
| General Enclosure Options | | Acrylic Roof (Requires 6'8" Enclosure) | $970.00 |
| General Enclosure Options | | Power Ventilation System (for Enclosure WITH Roof) | $2,870.00 |
| Top Door Upgrade (all doors include extra side panels) | | Upper Landing Gate is Included | $0.00 |
|---|---|---|---|
| Top Door Upgrade (all doors include extra side panels) | | 36" Steel LH | $2,885.00 |
| Top Door Upgrade (all doors include extra side panels) | | 36" Steel RH | $2,885.00 |
| Top Door Upgrade (all doors include extra side panels) | | 36" Acrylic LH | $4,231.00 |
| Top Door Upgrade (all doors include extra side panels) | | 36" Acrylic RH | $4,231.00 |
| Top Door Upgrade (all doors include extra side panels) | | 42" Steel LH | $3,216.00 |
| Top Door Upgrade (all doors include extra side panels) | | 42" Steel RH | $3,216.00 |
| Top Door Upgrade (all doors include extra side panels) | | 42" Acrylic LH | $4,562.00 |
| Top Door Upgrade (all doors include extra side panels) | | 42" Acrylic RH | $4,562.00 |
| Top Extra Side Panels (add to included Top Gate) | | No Panels Needed - Ordered Top Door Upgrade | $0.00 |
|---|---|---|---|
| Top Extra Side Panels (add to included Top Gate) | | 36" Steel | $1,000.00 |
| Top Extra Side Panels (add to included Top Gate) | | 36" Acrylic | $1,000.00 |
| Top Extra Side Panels (add to included Top Gate) | | 42" Steel | $1,331.00 |
| Top Extra Side Panels (add to included Top Gate) | | 42" Acrylic | $1,331.00 |
| Call Send Options | | CALL/SEND STATION IN-FRAME CONTROL BOX - TOP/BOTTOM (EACH) | $216.00 |
|---|---|---|---|
| Call Send Options | | KEYED CALL/SEND IN-FRAME STATION CONTROL BOX - TOP/BOTTOM (EACH) | $300.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 1 LANDING | $393.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS | $770.00 |
| Call Send Options | | WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS | $1,154.00 |
| Call Send Options | | In-Frame Call Station (EACH) | $216.00 |
| Additional Options | | PLATFORM SAFETY PAN | $585.00 |
|---|---|---|---|
| Additional Options | | TOWER BRACE WITH BRACKET | $300.00 |
| Additional Options | | PHONE JACK | $262.00 |
| Additional Options | | EMERGENCY TOWER LIGHT, BACK-UP | $262.00 |
| Additional Options | | EXTRA KEYS (EACH) | $47.00 |
| Additional Options | | CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for color options and price) | $0.00 |
| Additional Options | | FLOAT LEVEL SWITCH | $262.00 |
| Additional Options | | lighted E-Stop w/Audible Alarm (for Residential Units) | $193.00 |
| State Required Inspections / Permits | | PERMIT (REQUIRED IN KENTUCKY) | $87.50 |
|---|---|---|---|
| State Required Inspections / Permits | | GEORGIA PERMIT & INSPECTION FEES | $250.00 |
| Delivery Options | | FLAT BED AND FORKLIFT DELIVERY | $539.00 |
|---|---|---|---|
| Delivery Options | | Residential Delivery or High Cost Delivery Zone | $145.00 |
| Delivery Options | | Pickup at Freight Terminal | $0.00 |
| Delivery State | | Delivery Outside of the United States | $0.00 |
|---|---|---|---|
| Delivery State | | Alabama | $0.00 |
| Delivery State | | Alaska | $0.00 |
| Delivery State | | Arizona | $0.00 |
| Delivery State | | Arkansas | $0.00 |
| Delivery State | | California | $0.00 |
| Delivery State | | Colorado | $0.00 |
| Delivery State | | Connecticut | $0.00 |
| Delivery State | | Delaware | $0.00 |
| Delivery State | | District of Columbia | $0.00 |
| Delivery State | | Florida | $0.00 |
| Delivery State | | Georgia | $0.00 |
| Delivery State | | Hawaii | $0.00 |
| Delivery State | | Idaho | $0.00 |
| Delivery State | | Illinois | $0.00 |
| Delivery State | | Indiana | $0.00 |
| Delivery State | | Iowa | $0.00 |
| Delivery State | | Kansas | $0.00 |
| Delivery State | | Kentucky | $0.00 |
| Delivery State | | Louisiana | $0.00 |
| Delivery State | | Maine | $0.00 |
| Delivery State | | Maryland | $0.00 |
| Delivery State | | Massachusetts | $0.00 |
| Delivery State | | Michigan | $0.00 |
| Delivery State | | Minnesota | $0.00 |
| Delivery State | | Mississippi | $0.00 |
| Delivery State | | Missouri | $0.00 |
| Delivery State | | Montana | $0.00 |
| Delivery State | | Nebraska | $0.00 |
| Delivery State | | Nevada | $0.00 |
| Delivery State | | New Hampshire | $0.00 |
| Delivery State | | New Jersey | $0.00 |
| Delivery State | | New Mexico | $0.00 |
| Delivery State | | New York | $0.00 |
| Delivery State | | North Carolina | $0.00 |
| Delivery State | | North Dakota | $0.00 |
| Delivery State | | Ohio | $0.00 |
| Delivery State | | Oklahoma | $0.00 |
| Delivery State | | Oregon | $0.00 |
| Delivery State | | Pennsylvania | $0.00 |
| Delivery State | | Rhode Island | $0.00 |
| Delivery State | | South Carolina | $0.00 |
| Delivery State | | South Dakota | $0.00 |
| Delivery State | | Tennessee | $0.00 |
| Delivery State | | Texas | $0.00 |
| Delivery State | | Utah | $0.00 |
| Delivery State | | Vermont | $0.00 |
| Delivery State | | Virginia | $0.00 |
| Delivery State | | Washington | $0.00 |
| Delivery State | | West Virginia | $0.00 |
| Delivery State | | Wisconsin | $0.00 |
| Delivery State | | Wyoming | $0.00 |
