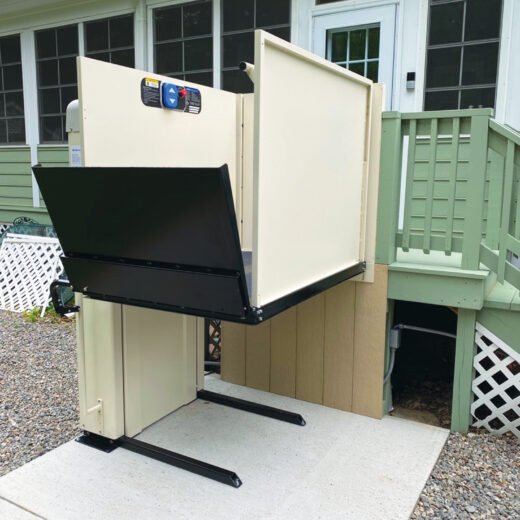

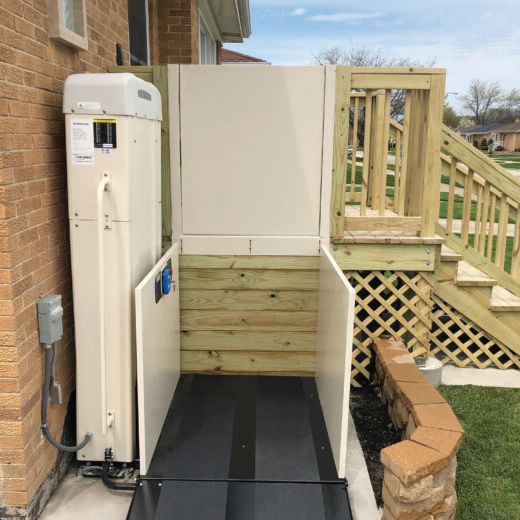

The Harmar 400-X Vertical Platform Lift represents a new generation and evolution in Vertical Platform Lifts.
Innovation is at the heart of this next generation VPL. The Harmar 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
Innovation is at the heart of this next generation VPL. The Harmar 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
Product Specs
- Lifting Capacity
750 lb - Standard Lift Height
53" - Maximum Lift Height
53" - Arrives Assembled
Yes - Drive System
Acme Screw Drive - Battery Powered Option
No - Constant Pressure Platform Control
Yes - Platform Size
36" x 48" (34" Usable Width) - Optional Platform Sizes
36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) - Platform Configuration
Straight-Thru Access - Guard Panel
36" for 36"x48" Platform, all others 42" - Lift Speed (FPM)
10.4 - Portable
No
| Lifting Height | | 53" MAXIMUM LIFT HEIGHT | $0.00 |
|---|
| Application | | Residential | $0.00 |
|---|
| Power Source | | AC POWERED | $0.00 |
|---|
| Use Option | | OUTDOOR USE | $216.00 |
|---|
| Tower Orientation | | TOWER ON THE LEFT | $0.00 |
|---|---|---|---|
| Tower Orientation | | TOWER ON THE RIGHT | $0.00 |
| Number of Stops | | 2 STOPS | $0.00 |
|---|
| Hoistway Installation | | INSTALLED IN A HOISTWAY | $0.00 |
|---|---|---|---|
| Hoistway Installation | | NO HOISTWAY | $0.00 |
| Platform Type (Width, Depth, Height) | | Select From Options Below | $0.00 |
|---|---|---|---|
| Platform Type (Width, Depth, Height) | | [___________36"_High____________] | $0.00 |
| Platform Type (Width, Depth, Height) | | Straight Through (180 Degrees) Requires Folding Ramp | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 48 X 36 STRAIGHT THROUGH PLATFORM | $0.00 |
| Platform Type (Width, Depth, Height) | | [___________42"_High____________] | $0.00 |
| Platform Type (Width, Depth, Height) | | Straight Through (180 Degrees) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 STRAIGHT THROUGH PLATFORM | $454.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 STRAIGHT THROUGH PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 STRAIGHT THROUGH PLATFORM | $931.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 STRAIGHT THROUGH PLATFORM | $1,047.00 |
| Platform Type (Width, Depth, Height) | | 90 Degrees (Tower on Left / Right determined by looking into lift from ground level) | $0.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 90 Degree LEFT PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 36 X 54 X 42 90 Degree RIGHT PLATFORM | $839.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree LEFT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 36 X 60 X 42 90 Degree RIGHT PLATFORM | $1,247.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 90 Degree LEFT PLATFORM | $1,354.00 |
| Platform Type (Width, Depth, Height) | | 42 X 54 X 42 90 Degree RIGHT PLATFORM | $1,354.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree LEFT PLATFORM | $1,454.00 |
| Platform Type (Width, Depth, Height) | | 42 X 60 X 42 90 Degree RIGHT PLATFORM | $1,454.00 |
| Platform Gate | | 42" High Gates Below not for 36" High Platform | $0.00 |
|---|---|---|---|
| Platform Gate | | NO PLATFORM GATE | $0.00 |

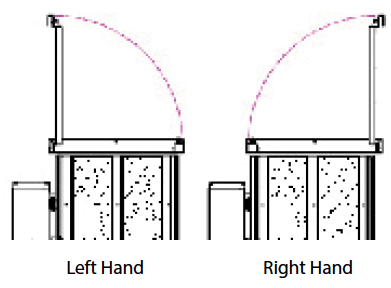

| Platform Gate |  | 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT | $1,454.00 |
| Platform Gate | | 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT | $1,454.00 |
| Platform Gate | | 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT | $1,700.00 |
| Platform Gate | | 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT | $1,700.00 |
| Platform Controls | | Emergency Stop Alarm with Lighted Button | $177.00 |
|---|
| Platform Options | | 54" HANDRAIL [Not applicable for 36x48x36] | $154.00 |
|---|---|---|---|
| Platform Options | | 60" HANDRAIL [Not applicable for 36x48x36] | $193.00 |
| Platform Options | | Keylocks for Controls | $108.00 |
| Platform Options | | CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH) | $154.00 |
| Ramp Type | | 36" AUTO-FOLD RAMP [Must Select for 36x48x36 Platform] | $0.00 |
|---|---|---|---|
| Ramp Type | | 42" AUTO-FOLD RAMP | $116.00 |
| Ramp Type | | 36" FIXED RAMP | $0.00 |
| Ramp Type | | 42" FIXED RAMP | $116.00 |
| Ramp Type | | Pit, no Ramp (Add Pit Switch) | $262.00 |
| Interlocks | | INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE. | $0.00 |
|---|---|---|---|
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH | $585.00 |
| Interlocks | | EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH | $585.00 |
| Interlocks | | OTHER INTERLOCK OPTIONS | $0.00 |
| Interlocks | | WIRING FOR INTERLOCKS PROVIDED BY OTHERS | $300.00 |

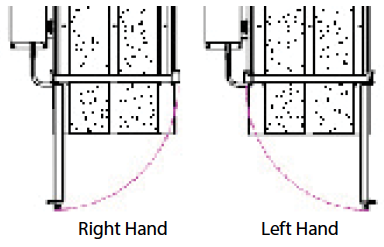

| Landing Gate |  | 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT | $1,516.00 |
|---|---|---|---|
| Landing Gate | | 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT | $1,516.00 |
| Landing Gate | | 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT | $1,700.00 |
| Landing Gate | | 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT | $1,700.00 |
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH FOR LANDING GATE | $136.00 |
|---|---|---|---|
| Landing Gate Call/Send | | CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE | $247.00 |
| Call Send Options | | CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) | $262.00 |
|---|---|---|---|
| Call Send Options | | KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) | $354.00 |
| Fascia Panels | | NO FASCIA PANELS | $0.00 |
|---|---|---|---|
| Fascia Panels | | FASCIA PANEL; 41" WIDE x 24" TALL | $116.00 |
| Fascia Panels | | FASCIA PANEL; 41" WIDE x 53" TALL | $162.00 |
| Fascia Panels | | FASCIA PANEL; 47" WIDE x 24" TALL | $147.00 |
| Fascia Panels | | FASCIA PANEL; 44" WIDE x 53" TALL | $231.00 |
| Fascia Panels | | FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT | $239.00 |
| Fascia Panels | | FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT | $270.00 |
| Additional Options | | TOWER BRACE WITH BRACKET | $300.00 |
|---|---|---|---|
| Additional Options | | EXTRA KEYS (EACH) | $47.00 |
| Additional Options | | FLOAT LEVEL SWITCH | $262.00 |
| Additional Options | | CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for Availability and Price) | $0.00 |
| Delivery Options | | FLAT BED AND FORKLIFT DELIVERY | $539.00 |
|---|---|---|---|
| Delivery Options | | Liftgate Service | $130.00 |
| Delivery Options | | Residential Delivery or High Cost Delivery Zone | $145.00 |
| Delivery Options | | Pickup at Freight Terminal | $0.00 |
