- Warranty
1 year on batteries
2 years on parts
5 years on drive train, motor and circuit board

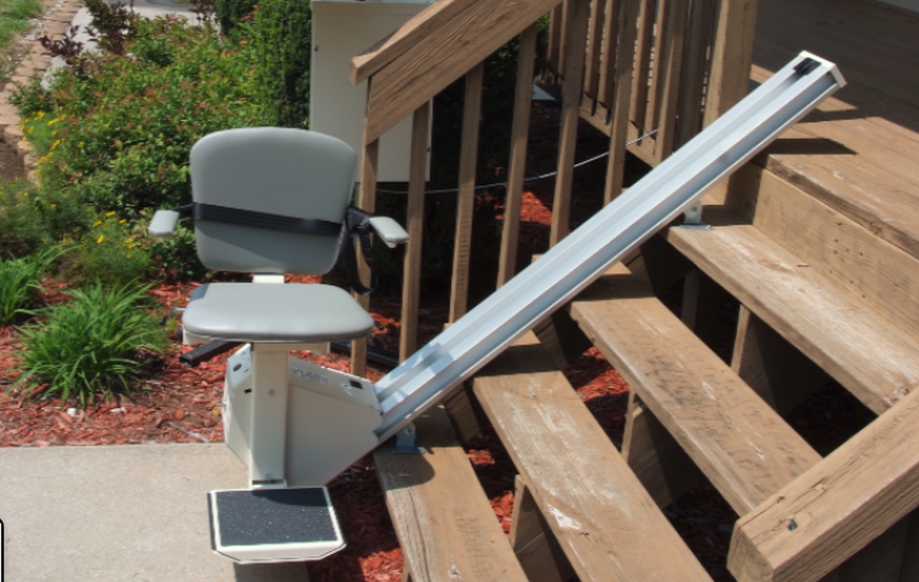

The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1

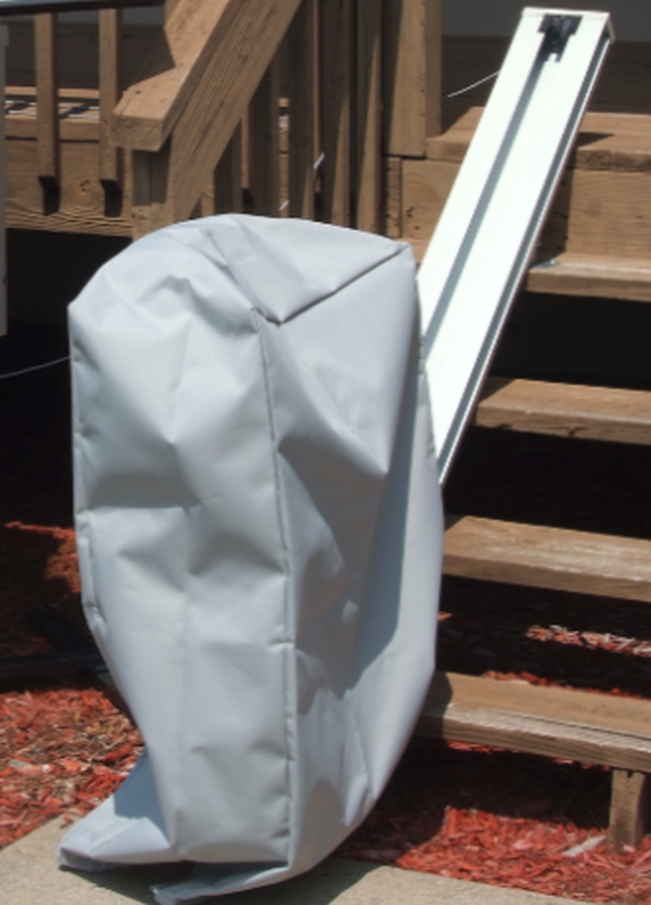

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

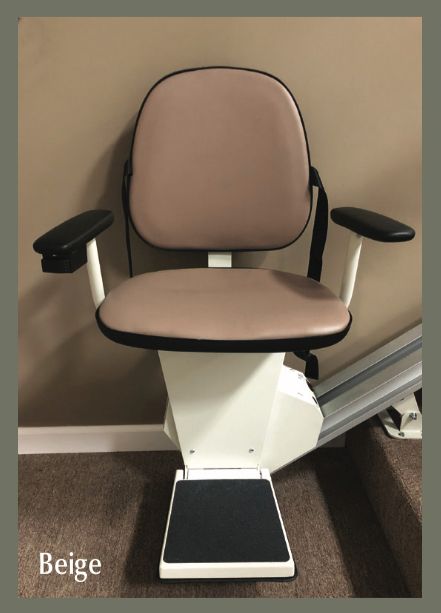

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
*CT, MI and WA residents: Please check your local codes to ensure proper compliance.
Product Specs
- Drive Type
Rack and Pinion - Battery Powered
Yes - Self Installable
No - Basic Installation Included
No - Standard Capacity
350 lb - Max Track Length, Standard
15' - Track Material
Anodized Aluminum - Swivel Seat
Yes - Swivel Seat Rotation
90 Degrees at top landing - Flip-Up Seat
Yes - Flip-Up Armrests
Yes - Constant Pressure Controls
Yes - Footrest Safety Sensor
No - Warranty
1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board - Track Width
6.5" - Call Stations Included
2 - Rail Angle, Min
25° - Rail Angle, Max
45° - Digital Diagnostics Display
No - Key Lock
No
| Stair Lift Orientation | | Right | $0.00 |
|---|---|---|---|
| Stair Lift Orientation | | Left | $0.00 |

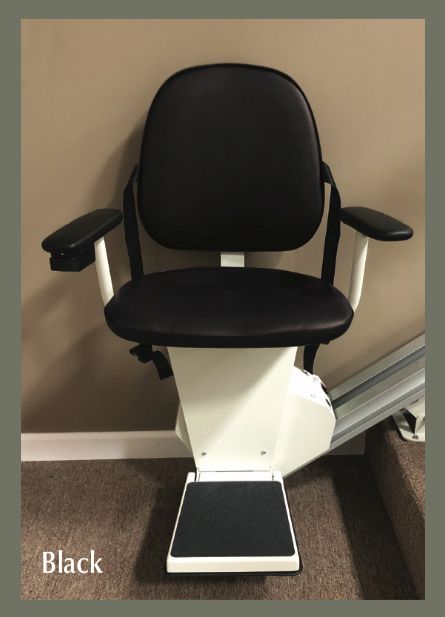

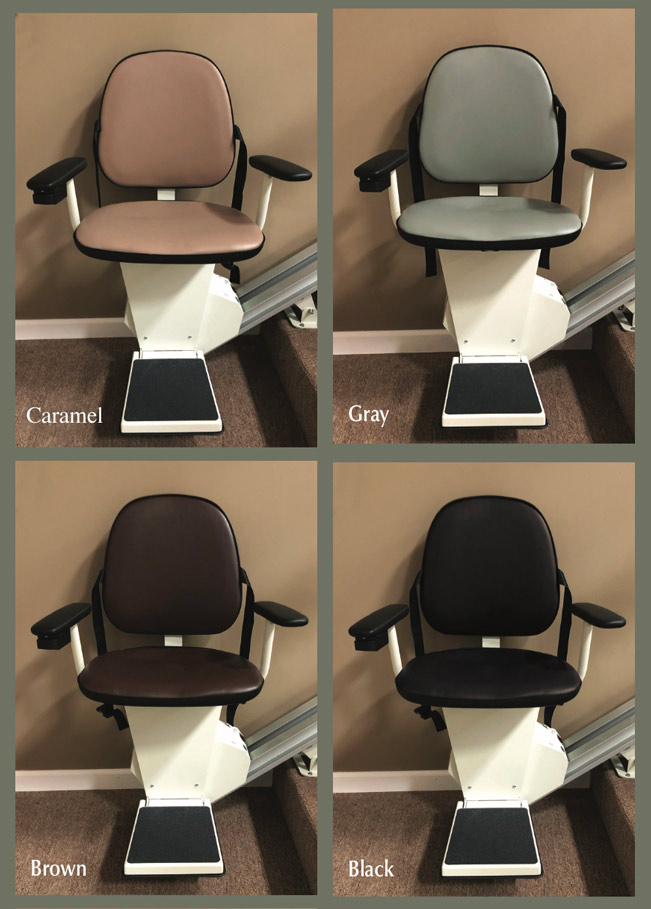

| Upholstery Color |  | Black | $0.00 |
|---|---|---|---|
| Upholstery Color |  | Walnut | $0.00 |
| Upholstery Color |  | Caramel | $0.00 |

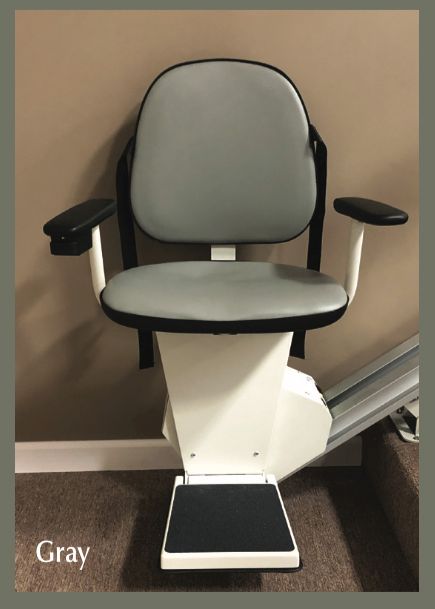

| Upholstery Color |  | Gray | $0.00 |
| Seat Width | | Standard | $0.00 |
|---|---|---|---|
| Seat Width | | Arms Extended 2" on Either Side | $230.00 |
| Chassis / Track Custom Color | | Chassis Custom Color | $310.00 |
|---|---|---|---|
| Chassis / Track Custom Color | | RAL Color for Chassis Powder Coat | $0.00 |
| Chassis / Track Custom Color | | Track Custom Color | $462.00 |
| Chassis / Track Custom Color | | RAL Color for Track Powder Coat | $0.00 |
| Track Length | | Standard 15' Of Track | $0.00 |
|---|---|---|---|
| Track Length | | Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost) | $75.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 1 - Total Staircase Length | $0.00 |
|---|---|---|---|
| Stair Lift Measurements According to Measurement Guide | | Step 2 - Top Landing to Bottom Step | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 3 - Stair Width | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 4 - Available Space at Bottom | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 5 - Height of One Step | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 6 - Length of One Tread | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 7 - One Step Front Edge to Front Edge | $0.00 |
| Stair Lift Measurements According to Measurement Guide | | Step 8 - Available Space at Top | $0.00 |

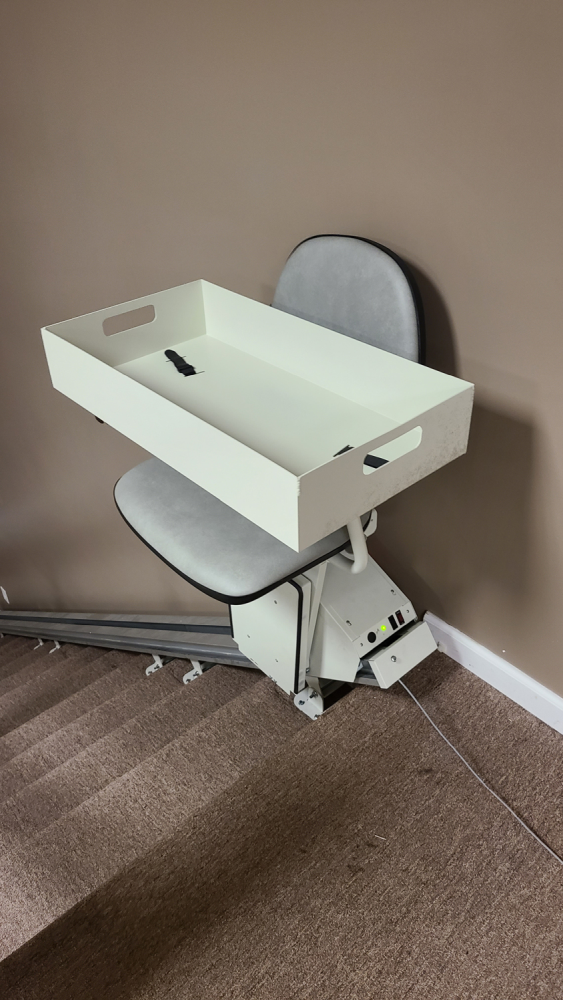

| Options |  | Cargo Tray Add-On | $230.00 |
|---|---|---|---|
| Options | | Wall Mounted Call/Send Controls (set) | $154.00 |
| Options | | Additional Key Fob Remote | $77.00 |
| Options | | Additional Standard Brackets | $38.00 |
| Options | | Tall Brackets | $39.00 |
| Options | | Extra Splice Bar | $23.00 |
| Options | | Key Switch | $77.00 |
| Options | | Lockable Battery Disconnect | $77.00 |
| Options | | Bluetooth Controller | $124.00 |
| Options |  | Solar Power Unit | $1,495.00 |
| Installation | | Self-Install | $0.00 |
|---|---|---|---|
| Installation | | Nationwide Installation Service | $599.00 |
| Installation | | Double Stair Lift Installation Service - Per Stair Lift | $437.50 |
| Installation | | Nationwide Measurement and Installation | $749.00 |
| Installation | | Stair Lift Removal and Disposal | $499.00 |
| Installation Special Cases | | Installation In Remote or Limited Access Location | $285.00 |
|---|---|---|---|
| Installation Special Cases | | Installation On Concrete, Steel, or Tile Stairs | $300.00 |
| Shipping | | Additional Shipping Charge for Unit with More Than 16' of Track | $154.00 |
|---|---|---|---|
| Shipping | | Shipping to Alaska or Hawaii (Call for Price) | $0.00 |
