Get a special offer on this lift. How? Sign up for our Special Offer program.
- Warranty
click here for warranty info

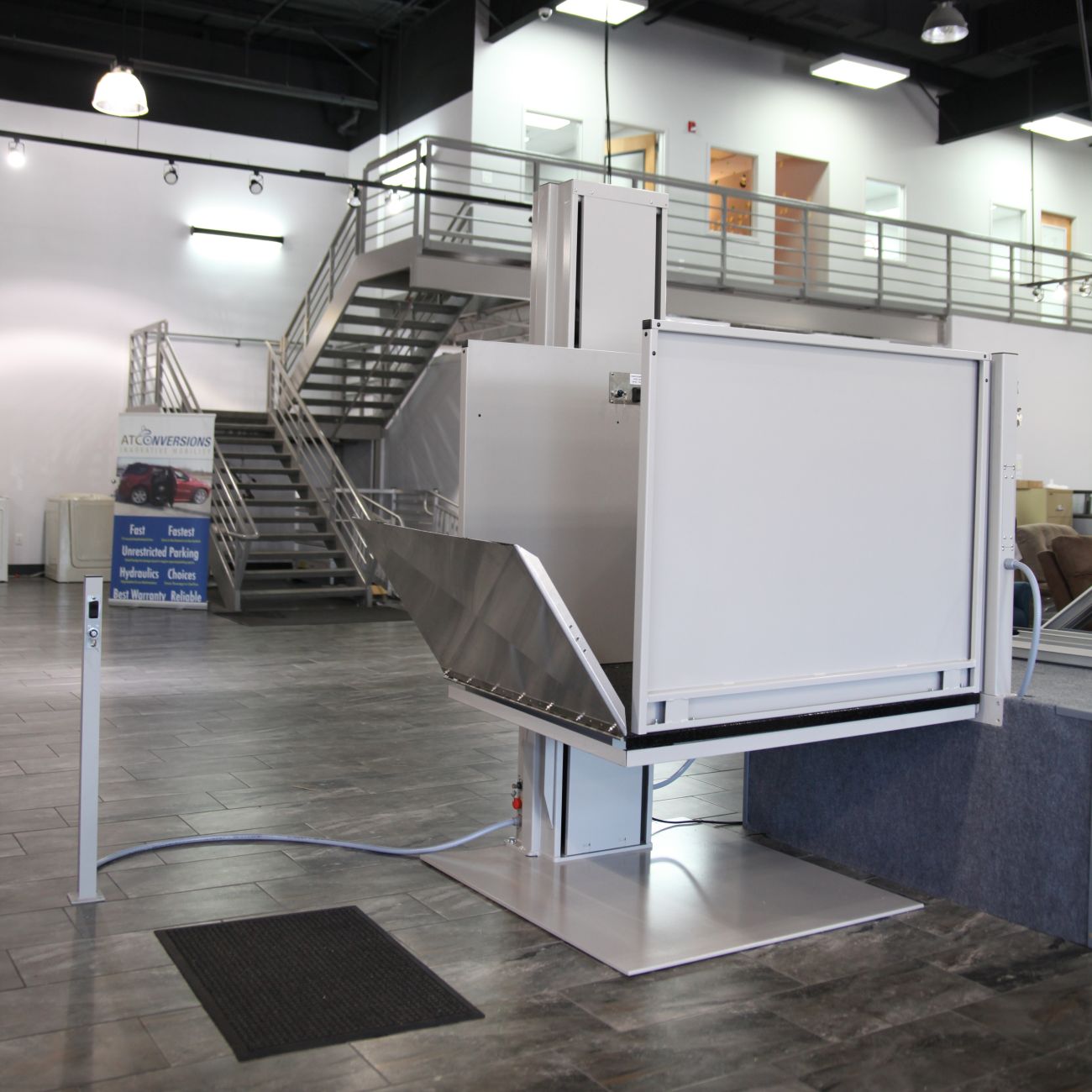

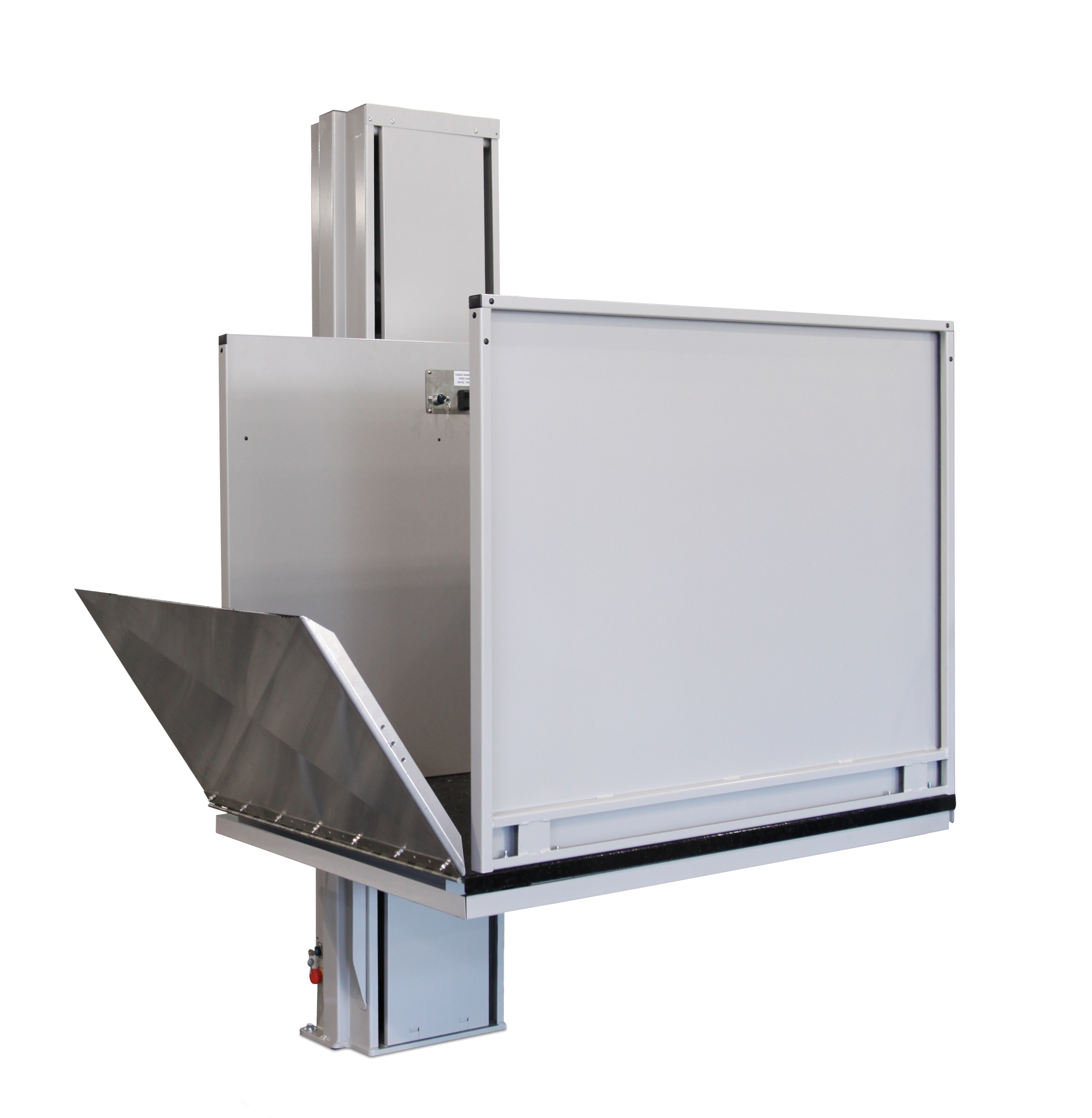

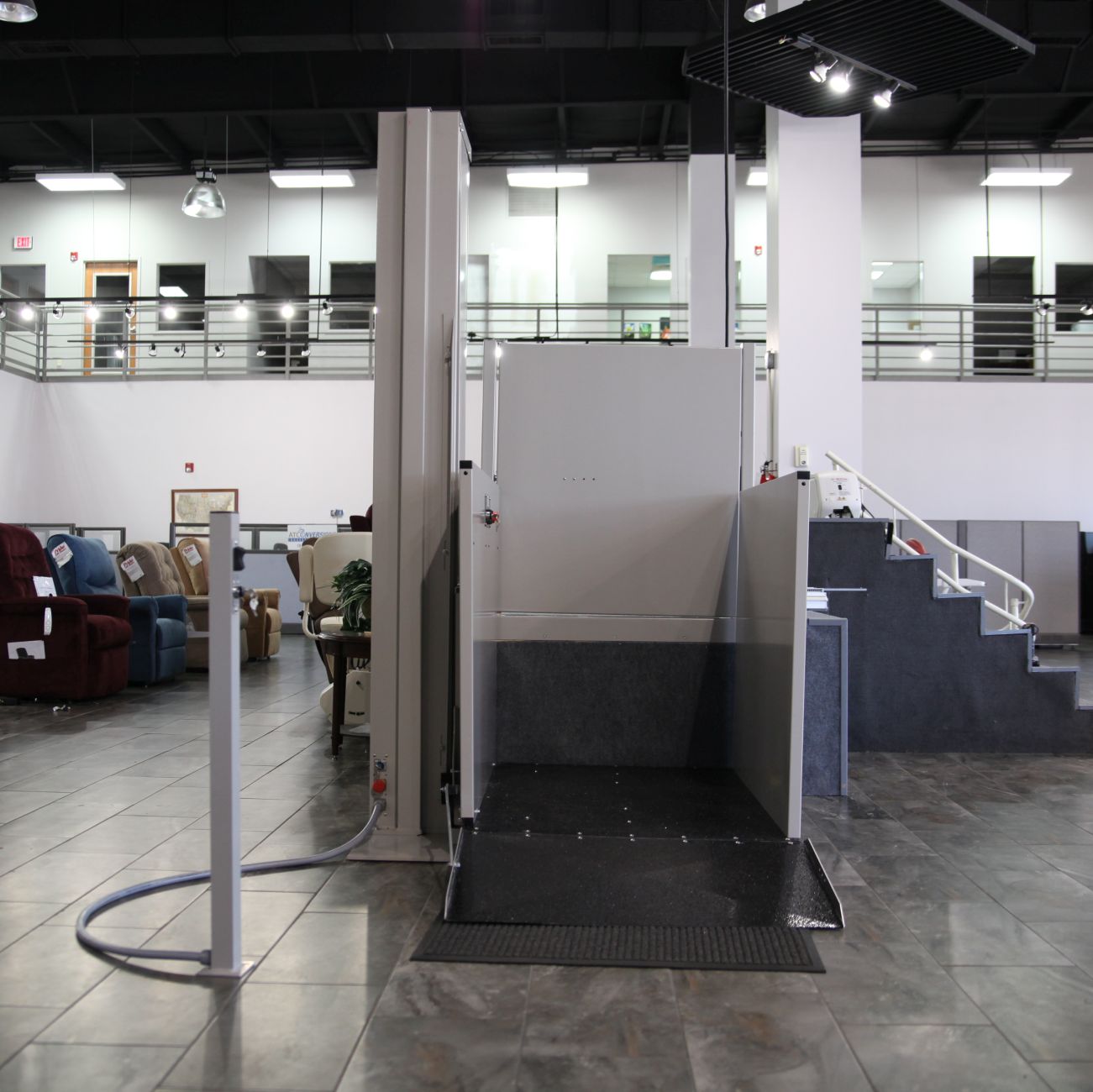

The AmeriGlide Nano Vertical Platform Lift is the market's
slimmest and most elegant tower design, which
means a more attractive look, low shipping costs
and easier installation.
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
- Much Smaller Footprint
- Automotive-Grade Steel
- More Attractive Look
- Plug-N-Play
- Reversible (left or right tower)
Product Specs
- Lifting Capacity
800 lb - Standard Lift Height
64" - Maximum Lift Height
64" - Arrives Assembled
Yes - Drive System
Acme Screw - Battery Powered Option

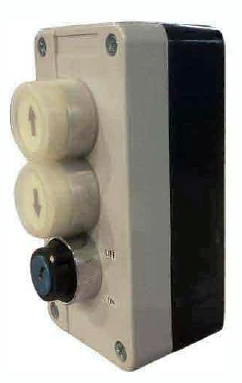

Yes - Constant Pressure Platform Control
Yes - Emergency Stop Platform Control
Included - Alarm Button

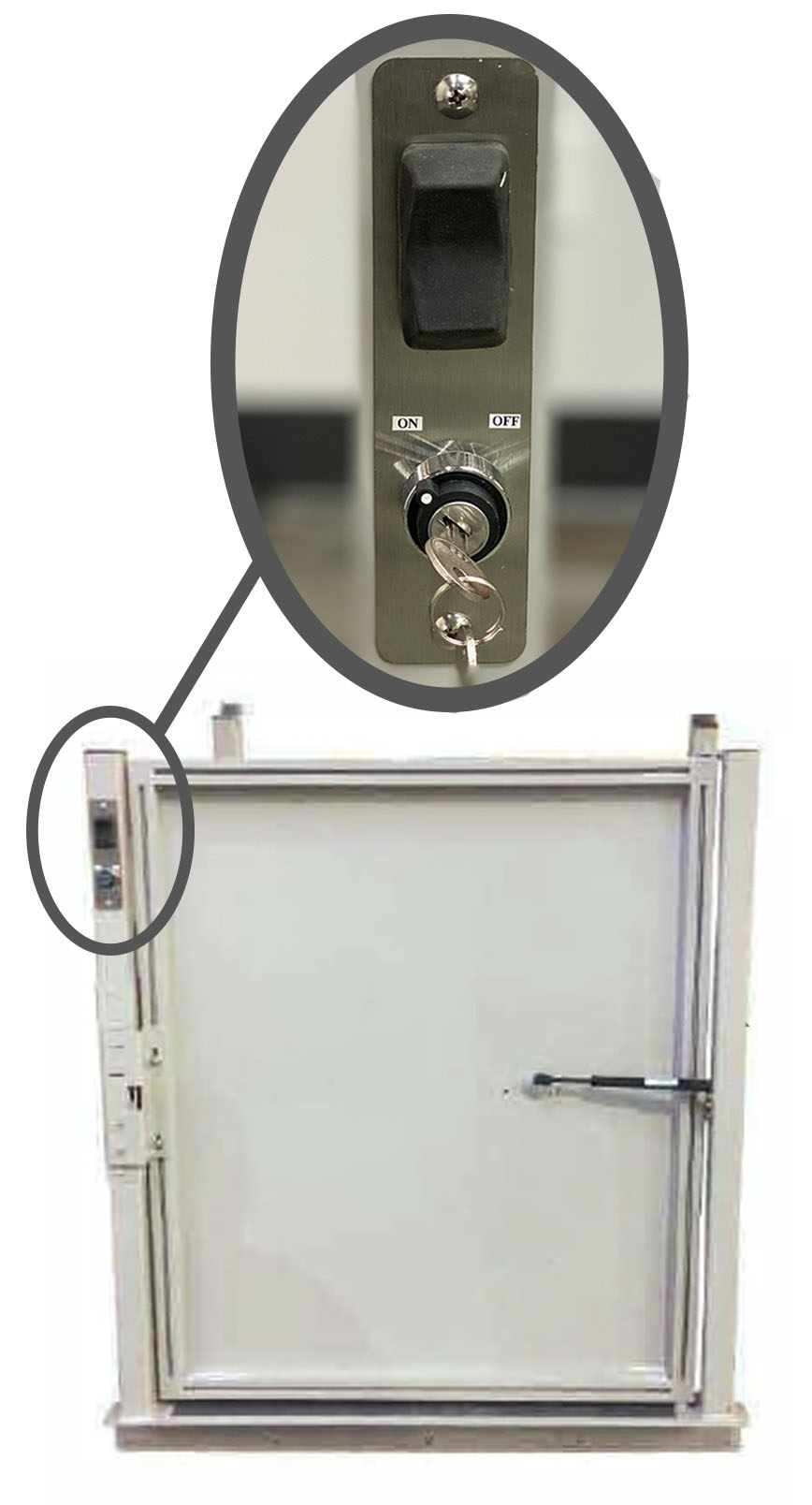

Included - Keyed Platform Control
Included - Platform Type
Non-skid (Epoxy crushed and recycled tires) - Platform Size
36" x 54" - Platform Configuration
Straight-Thru Access - Maximum Stops
2 - Lift Speed (FPM)
12 - Portable
No
| Nano Includes | | 455 Keys | $0.00 |
|---|---|---|---|
| Nano Includes | | Rocker Switch | $0.00 |
| Nano Includes | | Audible Emergency Alarm | $0.00 |
| Nano Includes | | Pit Switch | $0.00 |
| Nano Includes | | AC Power Cord (120VAC/20A) and Interlock Wiring Kit (Interlocks Not Included) | $0.00 |
| Nano Includes | | Emergency Lowering | $0.00 |
| Power Source | | DC Battery Powered (2 x U1 Batteries Included) | $0.00 |
|---|
| Number of Stops | | Two Stop | $0.00 |
|---|
| Lifting Height | | 64" Maximum Lift Height (tower 92") | $0.00 |
|---|
| Platform / Tower Configuration |  | Straight Thru Left Hand | $0.00 |
|---|---|---|---|
| Platform / Tower Configuration |  | Straight Thru Right Hand | $0.00 |
| Platform Dimensions (Dimensions are All Clear) | | 36" x 54" | $0.00 |
|---|
| Entrance Gate Options (Interlock Included with Gate) | | A Call/Send Control must be ordered for every Gate Ordered | $0.00 |
|---|---|---|---|
| Entrance Gate Options (Interlock Included with Gate) | | 36" W x 42" H Upper Landing Gate | $1,199.00 |

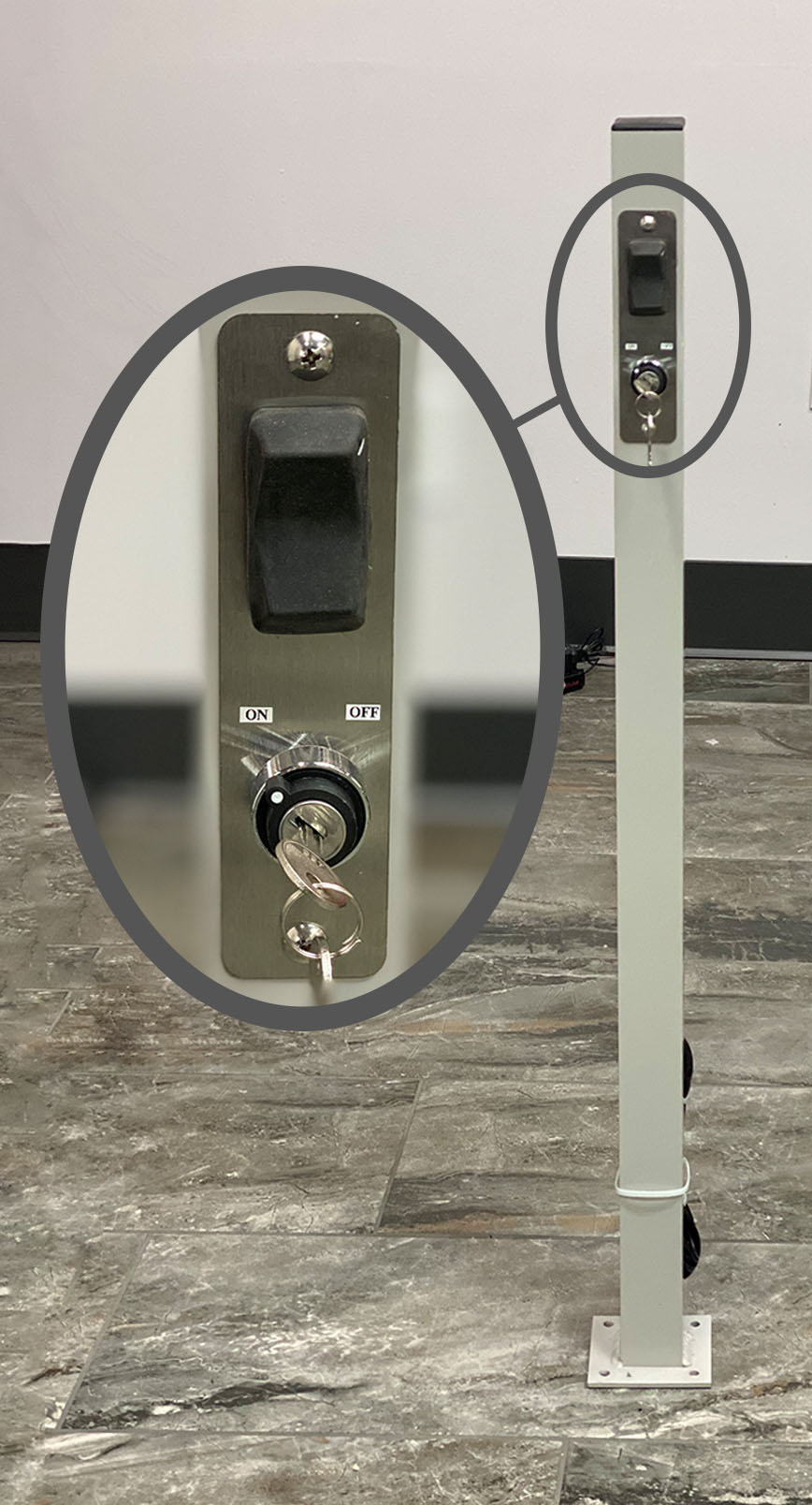

| Call/Send Options |  | Keyed Call/Send Post - Lower Landing | $250.00 |
|---|---|---|---|
| Call/Send Options | | Keyed Call/Send Post - Upper Landing | $250.00 |

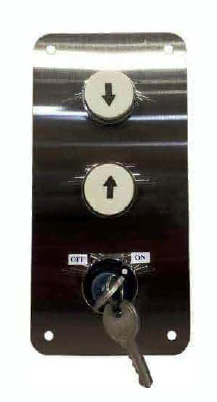

| Call/Send Options |  | Keyed Call/Send Flush Mount - Lower Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Flush Mount - Upper Landing | $250.00 |
| Call/Send Options |  | Keyed Call/Send Surface Mount - Lower Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Surface Mount - Upper Landing | $250.00 |
| Call/Send Options |  | Gate Mounted for Upper Landing Gate | $250.00 |

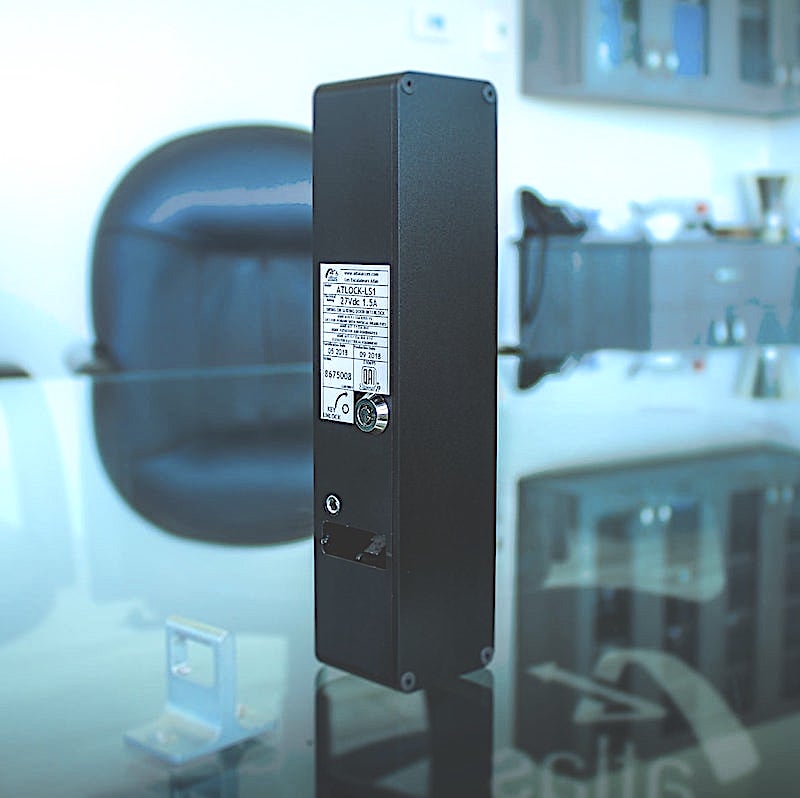

| Interlocks (For Gates/Doors Provided by Others) |  | Interlock Only (For Gates/Doors Provided by Others) | $399.00 |
|---|
| State Required Inspections / Permits / Evaluations | | Permit (Required in Kentucky) | $87.50 |
|---|---|---|---|
| State Required Inspections / Permits / Evaluations | | Georgia Permit & Inspection Fees | $250.00 |
| State Required Inspections / Permits / Evaluations | | Site Evaluation (Required for sites outside a 50 mile radius of Raleigh when Install Purchased) | $150.00 |
| State Required Inspections / Permits / Evaluations | | Alabama residents, please call 1 (205) 202-0158 for installation and permit pricing. | $0.00 |
| Installation (Within 100 miles of Raleigh) | | Self-Install | $0.00 |
|---|---|---|---|
| Installation (Within 100 miles of Raleigh) | | Up to 64" Lift Height Installation | $1,295.00 |
| Delivery Options | | Pick up at Local Freight Terminal | $0.00 |
|---|---|---|---|
| Delivery Options | | Raleigh NC Warehouse Pickup | $675.00 |
| Delivery Options | | Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site | $0.00 |
| Delivery Options | | Site Shipping - Liftgate Delivery | $250.00 |
| Delivery Options | | Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas) | $1,499.00 |
| Delivery Options | | Factory Pickup | $0.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: Eastern and East-Central States | $0.00 |
|---|---|---|---|
| Delivery Zones (adds to flat shipping charge) | | Deliver to New York City 5 Boroughs | $299.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: MN, WI, NE, IA, IL, KS, MO, AR, OK, LA, TX | $194.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: ND, SD, WY, CO, NM | $475.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: MT, ID, UT, AZ, NV, CA, WA, OR | $913.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: AK, HI, PR (call for price) | $0.00 |
