The AmeriGlide Hercules 750 Commercial Vertical Lift is the ideal turnkey vertical platform lift for outdoor or indoor commercial applications which includes Platform and Upper Landing Gates and Call/Send for both levels. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.
A 750 pound weight capacity is standard on the Hercules. Great for lifting large wheelchairs and two people at one time.

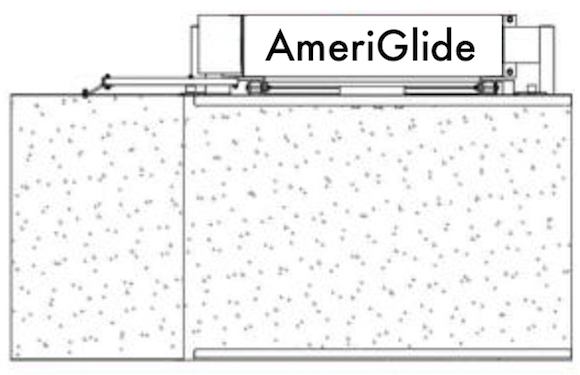

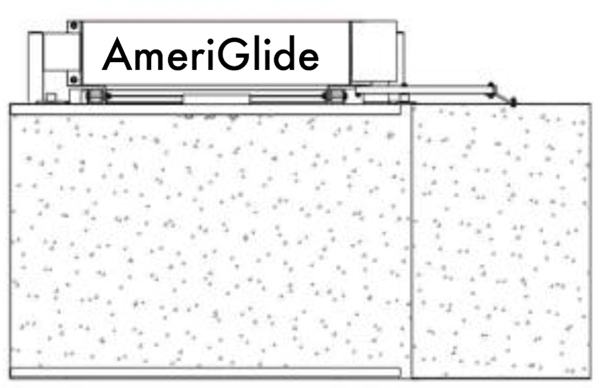

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.
If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.
Product Specs
- Lifting Capacity
750 lb - Standard Lift Height
64" - Maximum Lift Height
64" - Arrives Assembled
No - Drive System
Direct Drive ACME Screw - Battery Powered Option
Yes - Constant Pressure Platform Control
Yes - Alarm Button
Included - Platform Type
Non-skid (Epoxy crushed and recycled tires) - Platform Size
36"W x 54"L - Optional Platform Sizes
n/a - Platform Configuration
Straight-Thru Access - Optional Platform Configurations
n/a - Grab Rail
Included - Maximum Stops
2 - Lift Speed (FPM)
9 - Portable
No
| Commercial Quick Ship Hercules 750 Includes | | Platform Gate (hinged on same side as tower) | $0.00 |
|---|---|---|---|
| Commercial Quick Ship Hercules 750 Includes | | Upper Landing Gate, Includes Integrated Call/Send (hinge side selected below) | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | 2252 Keys | $0.00 |

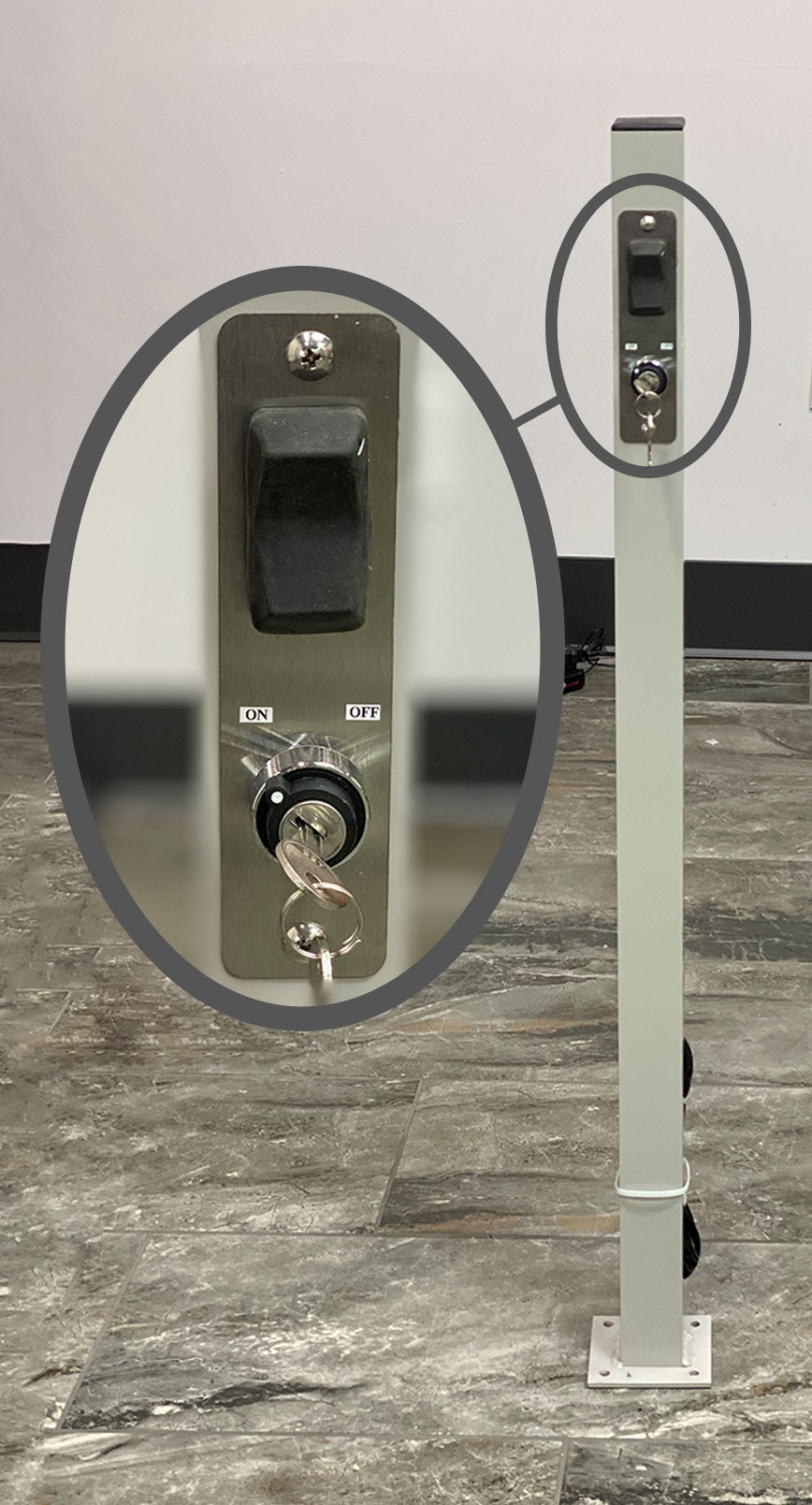

| Commercial Quick Ship Hercules 750 Includes | | Rocker Switch | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | Manually Resettable Audible Platform Alarm | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | Pit Switch | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | Grab Bar | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | Platform Lights | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | Main Disconnect | $0.00 |
| Commercial Quick Ship Hercules 750 Includes | | AC Power Cord and Interlock Wiring Kit (Interlocks Not Included) | $0.00 |
| Power Source | | DC 24V Battery Operated | $0.00 |
|---|---|---|---|
| Power Source | | AC 120V | $0.00 |
| Number of Stops | | Two Stop | $0.00 |
|---|
| Lifting Height | | 64" Maximum Lift Height (tower 92") | $0.00 |
|---|
| Color of Unit | | Atlas Gray (standard) | $0.00 |
|---|
| Platform / Tower Configuration |  | Straight Thru Left Hand | $0.00 |
|---|---|---|---|
| Platform / Tower Configuration |  | Straight Thru Right Hand | $0.00 |
| Platform Dimensions (Dimensions are All Clear) | | 36" x 54" | $0.00 |
|---|
| Upper Landing Hinge Side (includes Call/Send in Gate Frame) |  | Open on Left (hinged on right) | $0.00 |
|---|---|---|---|
| Upper Landing Hinge Side (includes Call/Send in Gate Frame) |  | Open on Right (hinged on left) | $0.00 |

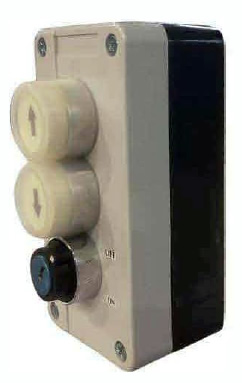

| Call/Send (One Included for Lower Landings) |  | Surface Mount | $0.00 |
|---|---|---|---|

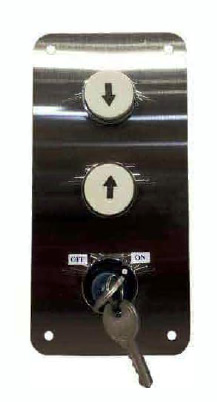

| Call/Send (One Included for Lower Landings) |  | Flush Mount | $0.00 |
| Call/Send (One Included for Lower Landings) |  | Post Mount | $0.00 |
| Additional Call/Send | | Surface Mount | $250.00 |
|---|---|---|---|
| Additional Call/Send | | Flush Mount | $250.00 |
| Additional Call/Send | | Post Mount | $250.00 |
| Delivery Options | | Pick up at Local Freight Terminal | $0.00 |
|---|---|---|---|
| Delivery Options | | Raleigh NC Warehouse Pickup | $675.00 |
| Delivery Options | | Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site | $0.00 |
| Delivery Options | | Site Shipping - Liftgate Delivery | $250.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: Eastern and East-Central States | $0.00 |
|---|---|---|---|
| Delivery Zones (adds to flat shipping charge) | | Deliver to New York City 5 Boroughs | $299.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: MN, WI, NE, IA, IL, KS, MO, AR, OK, LA, TX | $300.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: ND, SD, WY, CO, NM | $600.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: MT, ID, UT, AZ, NV, CA, WA, OR | $900.00 |
| Delivery Zones (adds to flat shipping charge) | | Deliver to: AK, HI, PR (call for price) | $0.00 |
