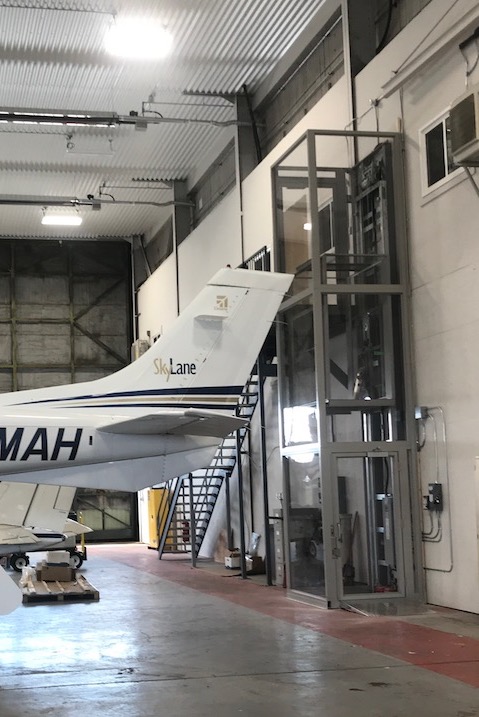

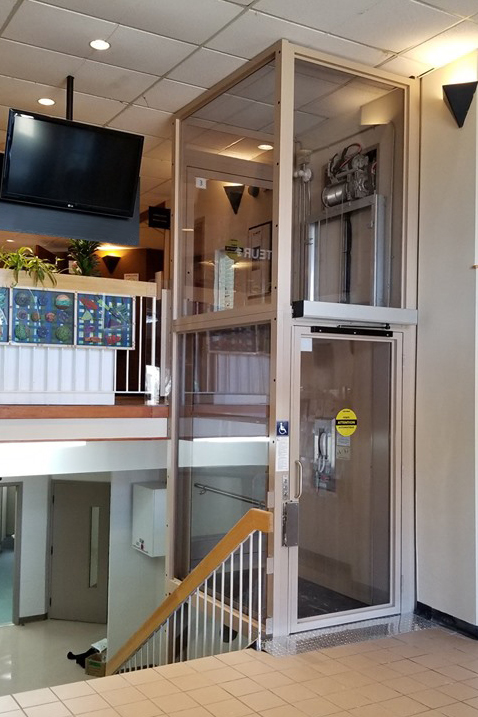

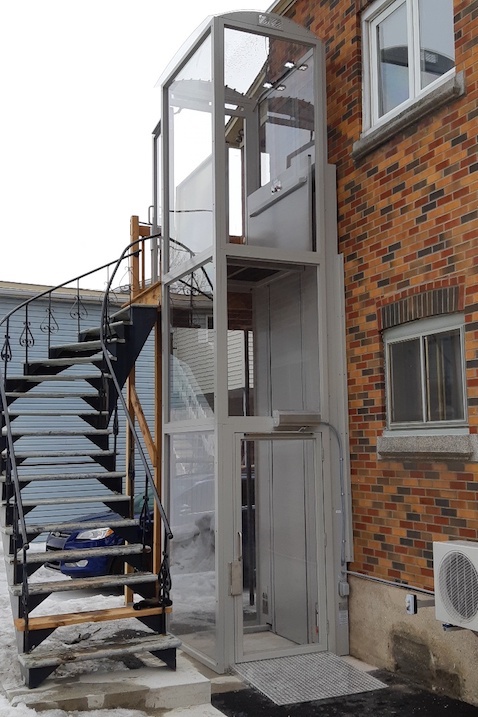

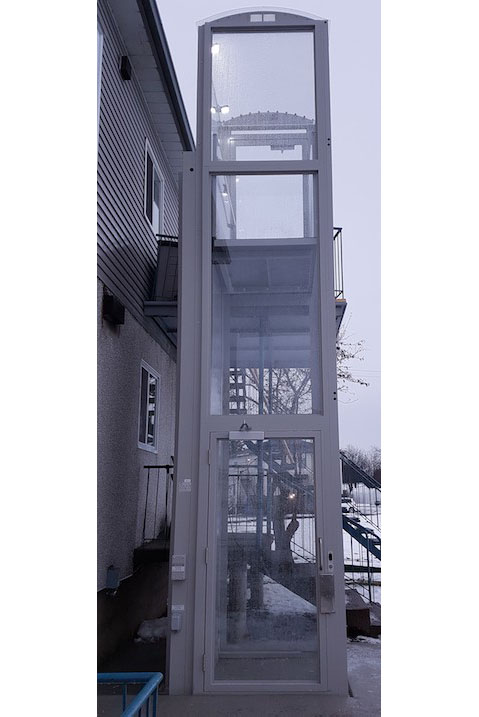

The AmeriGlide Hercules II DC 750 Commercial Enclosed Vertical Lift is the ideal vertical platform lift for outdoor or indoor commercial applications. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions. The enclosure provided with this vertical platform lift makes it unnecessary to have a hoistway built where the lift will be installed.
A 750 pound weight capacity comes standard on the Hercules II DC, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.
The acme screw direct drive makes the Hercules II DC the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules II DC 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.
Product Specs
- Lifting Capacity
750 lb - Standard Lift Height
64" - Maximum Lift Height
160" - Arrives Assembled
No - Drive System
Direct Drive Acme Screw - Battery Powered Option
Yes - Constant Pressure Platform Control
Yes - Alarm Button
Included - Platform Type
Non-skid (Epoxy crushed and recycled tires) - Platform Size
W 34"-36" x L 54"-60" - Optional Platform Sizes
Custom: W (31" to 42") x L (46" to 66") - Platform Configuration
Straight-Thru Access - Optional Platform Configurations
Same Side Entry-Exit, 90 Degree Adjacent Access - Grab Rail
Included - Maximum Stops
3 - Lift Speed (FPM)
9
| Hercules 750 Commercial Enclosed Includes | | 2252 Keys | $0.00 |
|---|---|---|---|
| Hercules 750 Commercial Enclosed Includes | | Rocker Switch or NEMA 3R | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Manually Resettable Audible Platform Alarm | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Pit Switch | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Grab Bar | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Platform Lights | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Main Disconnect | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | AC Power Cord and Interlock Wiring Kit (for Interlocks Included with Doors, Gates) | $0.00 |
| Hercules 750 Commercial Enclosed Includes | | Wing Walls | $0.00 |
| Power Source | | DC Battery Powered (2 x U1 Batteries Included) | $0.00 |
|---|---|---|---|
| Power Source | | AC Powered | $0.00 |
| Number of Stops | | Two Stop | $0.00 |
|---|---|---|---|
| Number of Stops | | Three Stop | $1,995.00 |
| Lifting Height | | 44" Maximum Lift Height (tower 72") | $1,500.00 |
|---|---|---|---|
| Lifting Height | | 64" Maximum Lift Height (tower 92") | $0.00 |
| Lifting Height | | 78" Maximum Lift Height (tower 108") | $3,999.00 |
| Lifting Height | | 98" Maximum Lift Height (tower 126") | $4,999.00 |
| Lifting Height | | 115" Maximum Lift Height (tower 158") | $8,999.00 |
| Lifting Height | | 130" Maximum Lift Heigth (tower 158") | $10,999.00 |
| Lifting Height | | 160" Maximum Lift Height (tower 190") | $12,999.00 |
| Select Tower Bracket Type | | For Tower Heights: 44", 64", 78", 98" | $0.00 |
|---|---|---|---|
| Select Tower Bracket Type | | No Bracket Desired (for 44", 64", 78", 98") | $0.00 |
| Select Tower Bracket Type | | Triangle (for 44", 64", 78", 98") | $390.91 |
| Select Tower Bracket Type | | Ground Bracket (for 44", 64", 78", 98") | $390.91 |
| Select Tower Bracket Type | | For Tower Heights 115", 130", 160" (bracket included in unit price) | $0.00 |
| Select Tower Bracket Type | | Triangle Bracket (for 115",130", 160") | $0.00 |
| Select Tower Bracket Type | | Ground Bracket (for 115",130", 160") | $0.00 |
| Color of Unit | | Grey (standard) | $0.00 |
|---|---|---|---|
| Color of Unit | | Custom Color (Call to Verify Color Available) | $3,500.00 |
| Color of Unit | | Stainless Steel | $8,995.00 |
| Fascia Panels | | No Fascia Panels | $0.00 |
|---|---|---|---|
| Fascia Panels | | Fascia Panels can be any height up to 98". Specify height in decimal feet below. | $0.00 |
| Fascia Panels | | Galvanized Steel Fascia Panels (per foot) | $60.00 |
| Fascia Panels | | 3/16" Acrylic Lexan w/Aluminum Frame (per foot) | $54.00 |

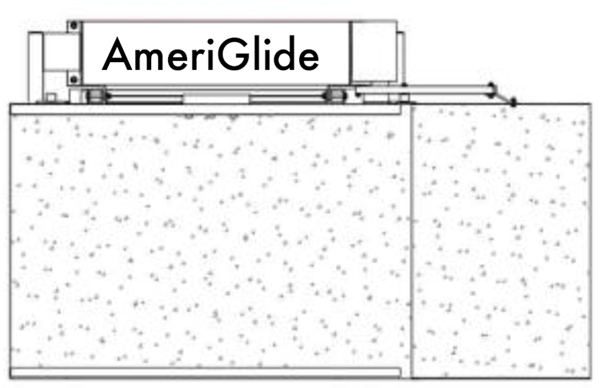

| Platform / Tower Configuration |  | Straight Thru Left Hand | $0.00 |
|---|---|---|---|

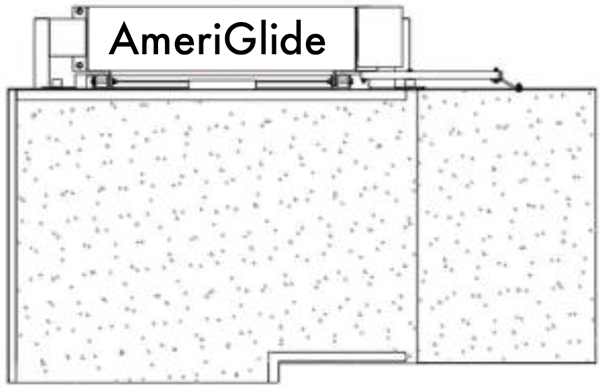

| Platform / Tower Configuration |  | 90 Degree Left Hand | $999.00 |
| Platform / Tower Configuration |  | Straight Thru Right Hand | $0.00 |

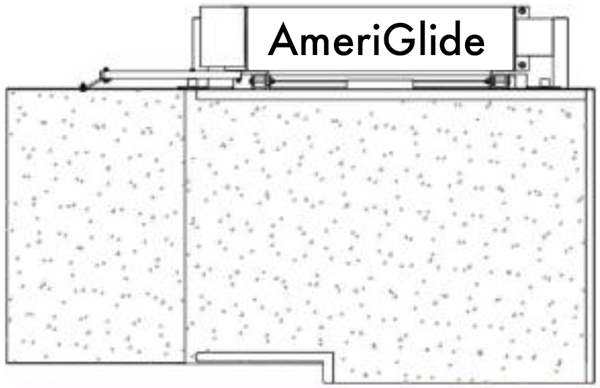

| Platform / Tower Configuration |  | 90 Degree Right Hand | $999.00 |
| Platform / Tower Configuration | | Same Side Entry/Exit | $999.00 |
| Guard Panels | | 42" High Steel Guard Panels (Standard) | $0.00 |
|---|
| Platform Dimensions (Dimensions are All Clear) | | 34" x 54" | $0.00 |
|---|---|---|---|
| Platform Dimensions (Dimensions are All Clear) | | 34" x 60" | $0.00 |
| Platform Dimensions (Dimensions are All Clear) | | 36" x 54" | $0.00 |
| Platform Dimensions (Dimensions are All Clear) | | 36" x 60" | $1,499.00 |
| Platform Dimensions (Dimensions are All Clear) | | Custom: W=30" to 42" by L=46" to 66" | $1,499.00 |
| Platform Controls | | 40mm (1.57") Diameter Buttons on Platform | $400.00 |
|---|---|---|---|
| Platform Controls | | 60mm (2.36") Diameter Buttons on Platform | $400.00 |
| Platform Controls | | Joystick | $209.10 |
| Platform Controls | | Additional Platform Controls (On Opposite Side) | $699.00 |
| Platform Controls | | Lighted Buttons for COP | $399.00 |
| Enclosure Options | | Polycarbonate | $0.00 |
|---|---|---|---|
| Enclosure Options | | Tinted Polycarbonate - Per Inch of Height | $18.91 |
| Enclosure Options | | Polycarbonate Rigid Roof & Ventilation System | $2,995.00 |
| Enclosure Options | | * Glass Instead of Polycarbonate - Per Inch of Height | $167.00 |
| Enclosure Options | | * Glass will increase freight charges. Please call for correct freight charges if glass is selected. | $0.00 |
| Lower Landing Orientation | | Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower | $0.00 |
|---|---|---|---|
| Lower Landing Orientation |  | Open on Left | $0.00 |
| Lower Landing Orientation |  | Open on Right | $0.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) | | A Call/Send Control must be ordered for every Door or Gate Ordered | $0.00 |
|---|---|---|---|

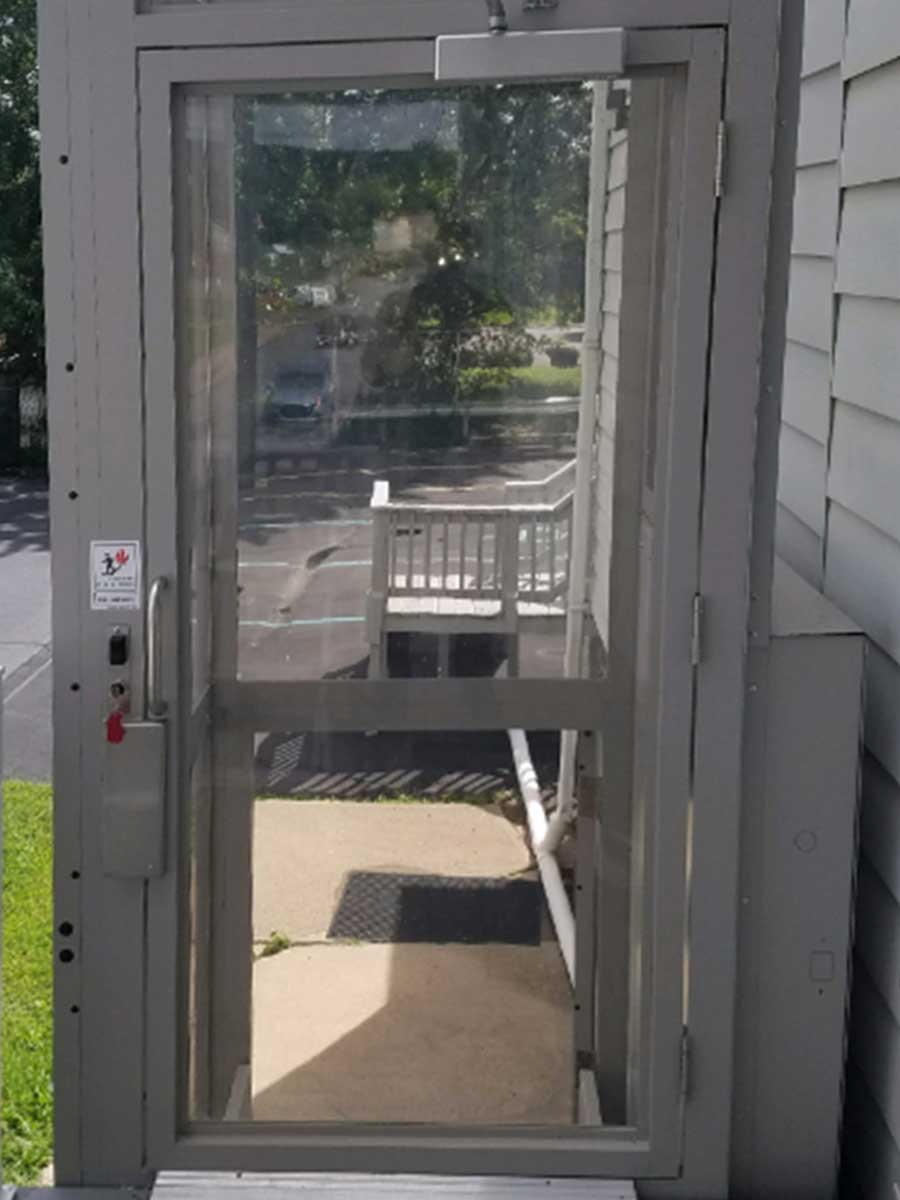

| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 36" W Interior | $1,350.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 36" W Exterior | $2,399.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 36" W Fire Rated | $2,250.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 36" W Exterior Polycarbonate | $2,399.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 42" W Interior | $2,295.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 42" W Exterior | $3,250.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 42" W Fire Rated | $2,999.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) |  | Door 80" H x 42" W Exterior Polycarbonate | $3,250.00 |
| Lower Landing Entrance (Interlock Included with Door/Gate) | | No Gate or Door (For Gates/Doors Provided by Others) | $0.00 |
| Mid Landing Orientation (3 Stop Units Only) | | Open on Left | $0.00 |
|---|---|---|---|
| Mid Landing Orientation (3 Stop Units Only) | | Open on Right | $0.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | A Call/Send Control must be ordered for every Door or Gate Ordered | $0.00 |
|---|---|---|---|
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 36" W Interior | $1,350.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 36" W Exterior | $2,399.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 36" W Fire Rated | $2,250.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 36" W Exterior Polycarbonate | $2,399.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 42" W Interior | $2,295.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 42" W Exterior | $3,250.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 42" W Fire Rated | $2,999.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Door 80" H x 42" W Exterior Polycarbonate | $3,250.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | Interlock is included with any Door Ordered | $0.00 |
| Mid Landing Entrance (3 Stop Units Only, Interlock Included) | | No Door (For Doors Provided by Others) | $0.00 |
| Upper Landing Orientation |  | Open on Left | $0.00 |
|---|---|---|---|
| Upper Landing Orientation |  | Open on Right | $0.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | A Call/Send Control must be ordered for every Door or Gate Ordered | $0.00 |
|---|---|---|---|
| Upper Landing Entrance (Interlock Included with Door/Gate) | | 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in Frame) | $1,199.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in Frame) | $1,695.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 36" W Interior | $1,350.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 36" W Exterior | $2,399.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 36" W Fire Rated | $2,250.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 36" W Exterior Polycarbonate | $2,399.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 42" W Interior | $2,295.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 42" W Exterior | $3,250.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 42" W Fire Rated | $2,999.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | Door 80" H x 42" W Exterior Polycarbonate | $3,250.00 |
| Upper Landing Entrance (Interlock Included with Door/Gate) | | No Gate or Door (For Gates/Doors Provided by Others) | $0.00 |
| Polycarbonate Gate Option | | If a gate is selected for Upper Landing, this option allows you to switch to a Polycarbonate panel | $0.00 |
|---|---|---|---|
| Polycarbonate Gate Option | | Polycarbonate Panel in Upper Landing Gate (must have selected gate above) | $595.00 |
| Interlocks (For Gates/Doors Provided by Others) |  | Interlock Only (For Gates/Doors Provided by Others) | $399.00 |
|---|
| Call/Send Options | | Call/Send Control must be ordered for every Door or Gate Ordered | $0.00 |
|---|---|---|---|
| Call/Send Options |  | Keyed Call/Send Post - Lower Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Post - Mid Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Post - Upper Landing | $250.00 |
| Call/Send Options |  | Keyed Call/Send Flush Mount - Lower Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Flush Mount - Mid Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Flush Mount - Upper Landing | $250.00 |
| Call/Send Options |  | Keyed Call/Send Surface Mount - Lower Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Surface Mount - Mid Landing | $250.00 |
| Call/Send Options | | Keyed Call/Send Surface Mount - Upper Landing | $250.00 |
| Call/Send Options | | Lighted Buttons for Call Station | $285.00 |
| Call/Send Options | | 40mm (1.57") Diameter Buttons on Call Station | $144.00 |
| Call/Send Options | | 60mm (2.36") Diameter Buttons on Call Station | $144.00 |
| Call/Send Options | | Anti-Tamper Commercial Buttons | $176.00 |
| Call/Send Options | | The Following Can Only Be Applied to a Polycarbonate Door | $0.00 |
| Call/Send Options |  | Keyed Call/Send In Door's Frame - Lower Landing | $350.00 |
| Call/Send Options | | Keyed Call/Send In Door's Frame - Mid Landing | $350.00 |
| Call/Send Options | | Keyed Call/Send In Door's Frame - Upper Landing | $350.00 |
| Auto Openers and Closers | | Auto Operator for Gate Qty. | $1,495.00 |
|---|---|---|---|
| Auto Openers and Closers |  | Auto Operator for Door Qty. | $2,295.00 |
| Auto Openers and Closers | | Wireless Remotes for Auto Operators (2x) | $240.00 |
| Auto Openers and Closers |  | Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator) | $156.00 |
| Other Options | | Designer Gate | $320.00 |
|---|---|---|---|
| Other Options | | Easy Access Lowering Mechanism | $527.00 |
| Other Options | | Folding Seat | $599.00 |
| Other Options | | Fixed Ramp for Bottom Landing | $599.00 |
| Other Options | | Custom Sized Folding Ramp (less than 24") | $390.91 |
| Other Options | | Additional Weather Protection Coating | $1,995.00 |
| Other Options | | Front Panel Brushes (Travel Track Protection) | $399.00 |
| Other Options | | GFI Outlet in Wing Wall | $159.82 |
| Other Options | | Handsfree Phone | $999.00 |
| Other Options | | 1000 lbs. Capacity | $1,995.00 |
| Other Options | | All Wooden Crate | $199.00 |
| Delivery Options | | Factory Pickup | $0.00 |
|---|---|---|---|
| Delivery Options | | Pick up at Local Freight Terminal | $0.00 |
| Delivery Options | | Site Shipping - Customer Provided Fork Lift or Loading Dock Available | $0.00 |
| Delivery Options | | Site Shipping - Liftgate Delivery (only for 64" models) | $250.00 |
| Delivery State | | Alabama | $0.00 |
|---|---|---|---|
| Delivery State | | Alaska | $0.00 |
| Delivery State | | Arizona | $0.00 |
| Delivery State | | Arkansas | $0.00 |
| Delivery State | | California | $0.00 |
| Delivery State | | Colorado | $0.00 |
| Delivery State | | Connecticut | $0.00 |
| Delivery State | | Delaware | $0.00 |
| Delivery State | | District of Columbia | $0.00 |
| Delivery State | | Florida | $0.00 |
| Delivery State | | Georgia | $0.00 |
| Delivery State | | Hawaii | $0.00 |
| Delivery State | | Idaho | $0.00 |
| Delivery State | | Illinois | $0.00 |
| Delivery State | | Indiana | $0.00 |
| Delivery State | | Iowa | $0.00 |
| Delivery State | | Kansas | $0.00 |
| Delivery State | | Kentucky | $0.00 |
| Delivery State | | Louisiana | $0.00 |
| Delivery State | | Maine | $0.00 |
| Delivery State | | Maryland | $0.00 |
| Delivery State | | Massachusetts | $0.00 |
| Delivery State | | Michigan | $0.00 |
| Delivery State | | Minnesota | $0.00 |
| Delivery State | | Mississippi | $0.00 |
| Delivery State | | Missouri | $0.00 |
| Delivery State | | Montana | $0.00 |
| Delivery State | | Nebraska | $0.00 |
| Delivery State | | Nevada | $0.00 |
| Delivery State | | New Hampshire | $0.00 |
| Delivery State | | New Jersey | $0.00 |
| Delivery State | | New Mexico | $0.00 |
| Delivery State | | New York | $0.00 |
| Delivery State | | North Carolina | $0.00 |
| Delivery State | | North Dakota | $0.00 |
| Delivery State | | Ohio | $0.00 |
| Delivery State | | Oklahoma | $0.00 |
| Delivery State | | Oregon | $0.00 |
| Delivery State | | Pennsylvania | $0.00 |
| Delivery State | | Rhode Island | $0.00 |
| Delivery State | | South Carolina | $0.00 |
| Delivery State | | South Dakota | $0.00 |
| Delivery State | | Tennessee | $0.00 |
| Delivery State | | Texas | $0.00 |
| Delivery State | | Utah | $0.00 |
| Delivery State | | Vermont | $0.00 |
| Delivery State | | Virginia | $0.00 |
| Delivery State | | Washington | $0.00 |
| Delivery State | | West Virginia | $0.00 |
| Delivery State | | Wisconsin | $0.00 |
| Delivery State | | Wyoming | $0.00 |
| Shipping Cost | | Call for Shipping Cost | $0.00 |
|---|
Customer Reviews
This product currently has no reviews. Would you like to leave one?
